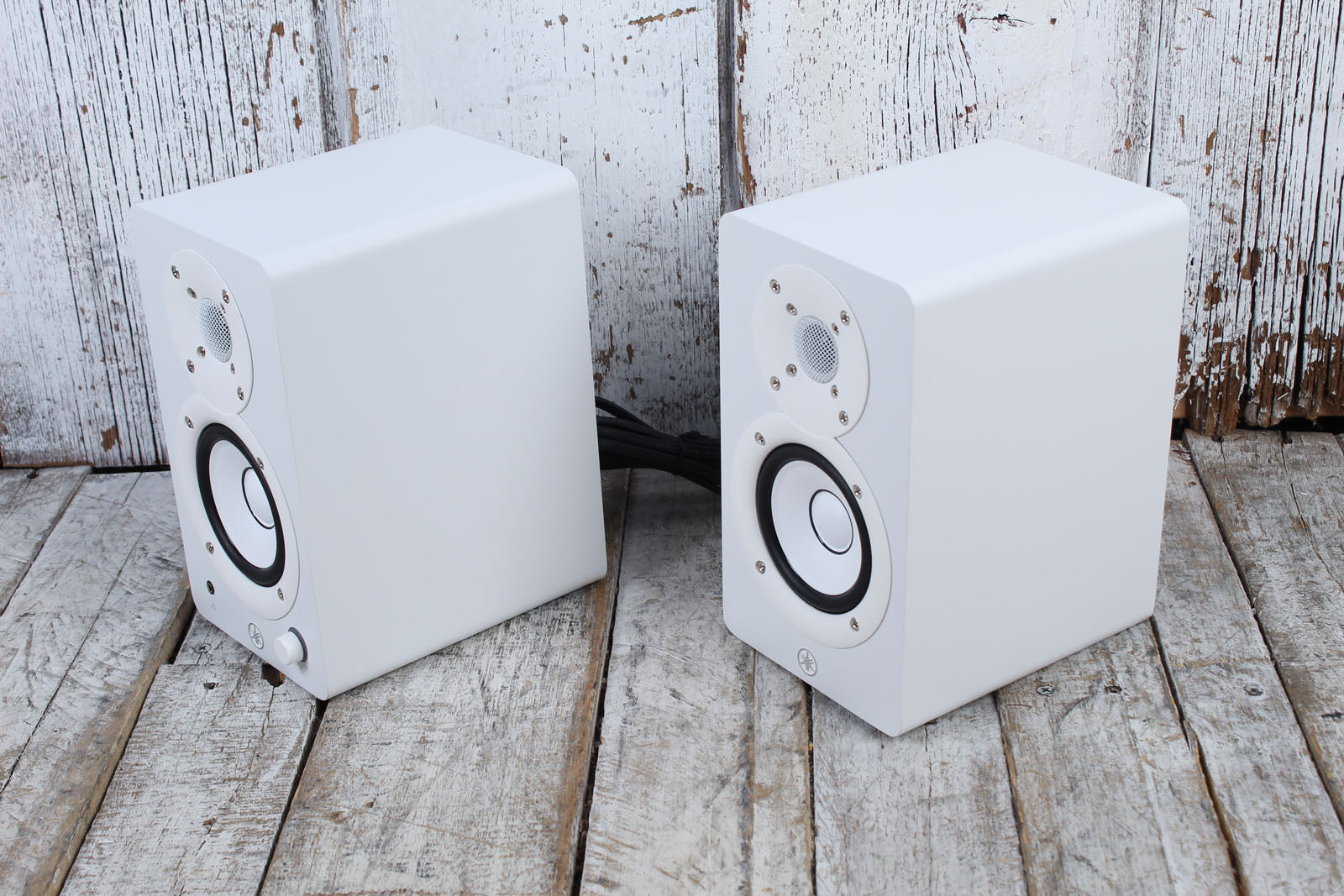

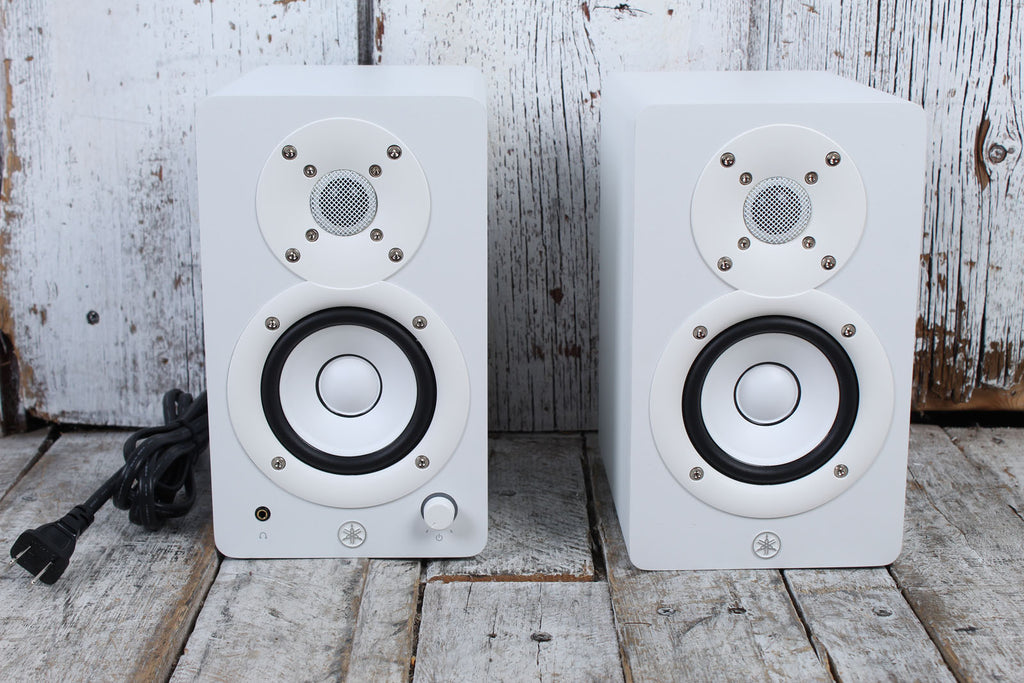

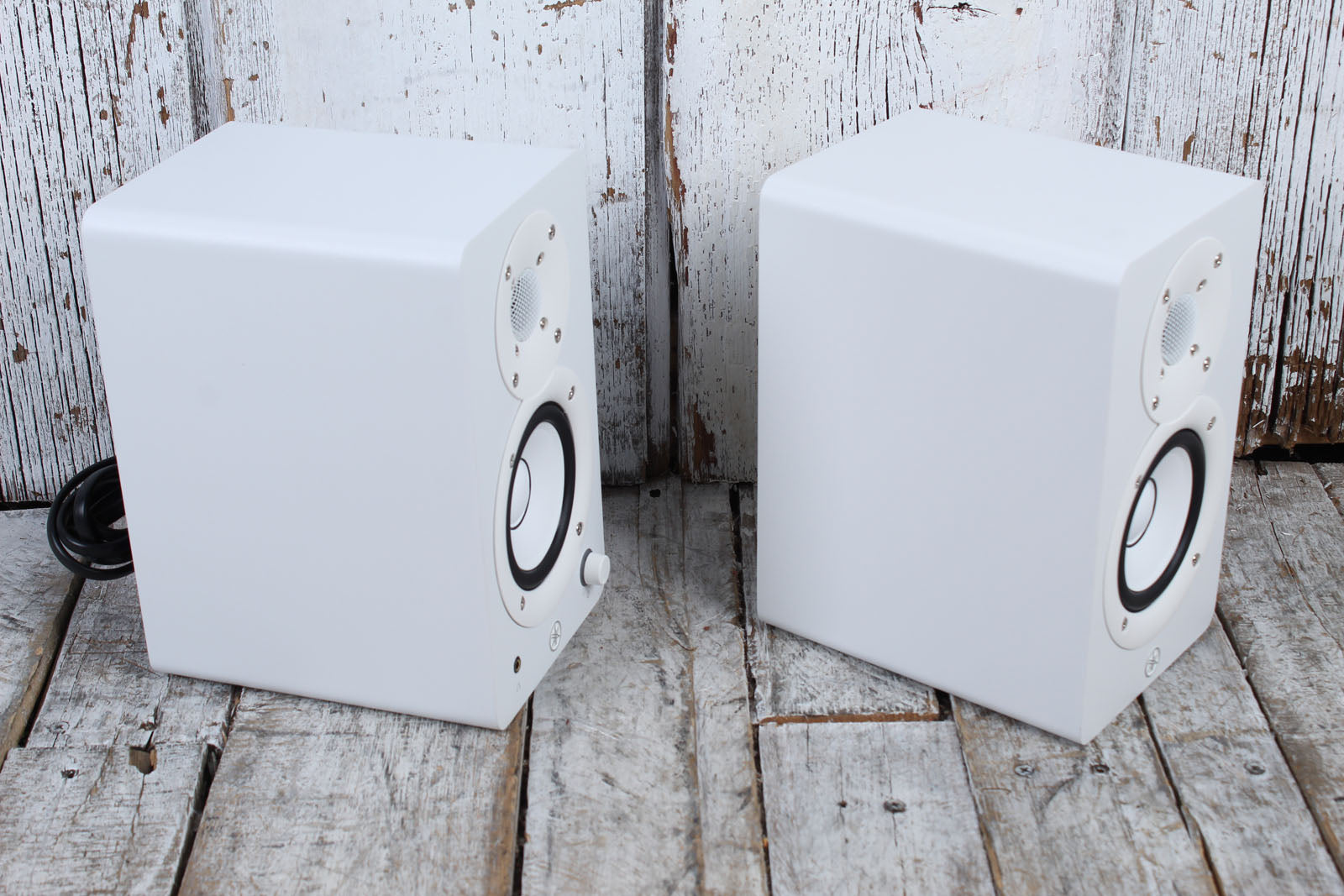

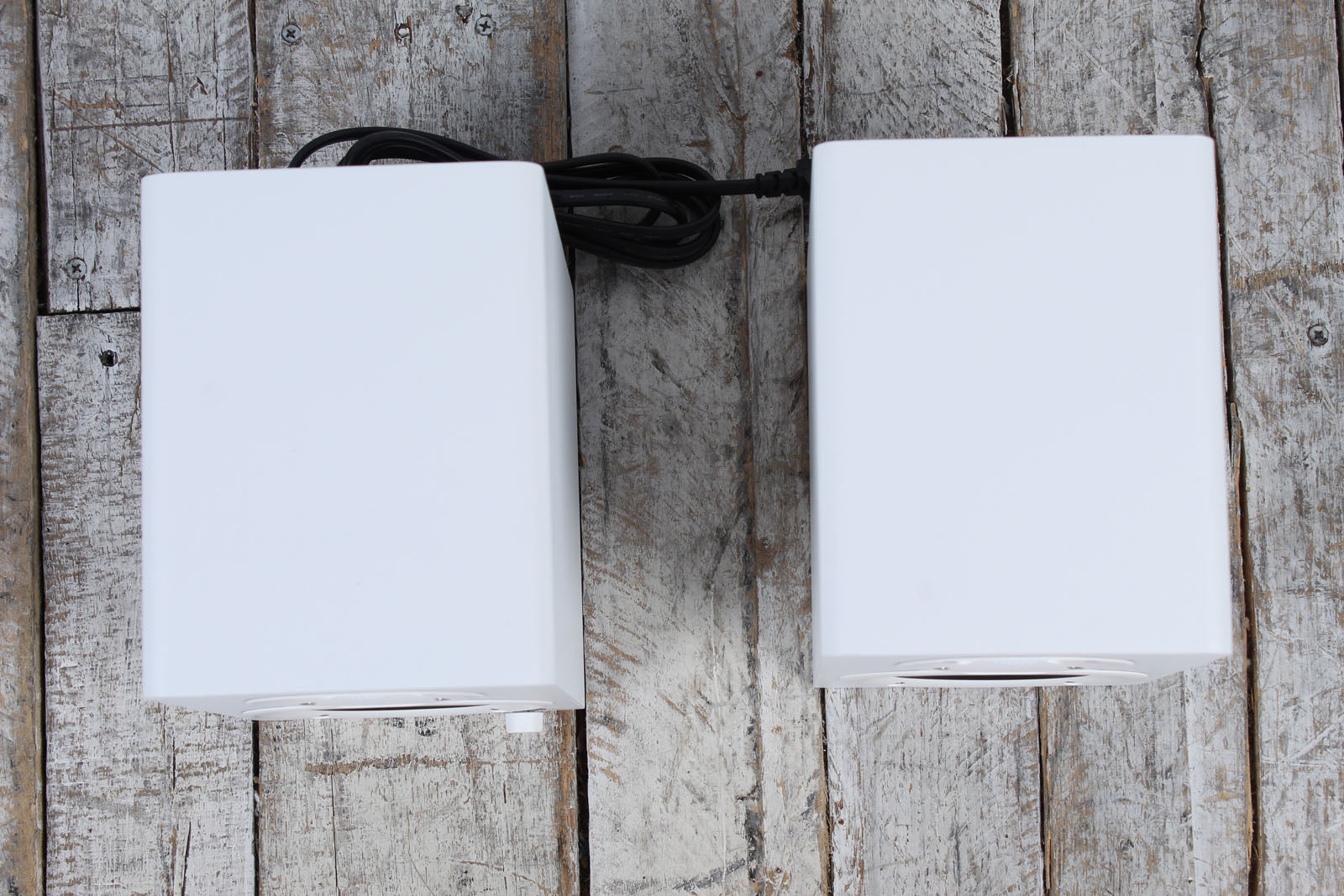

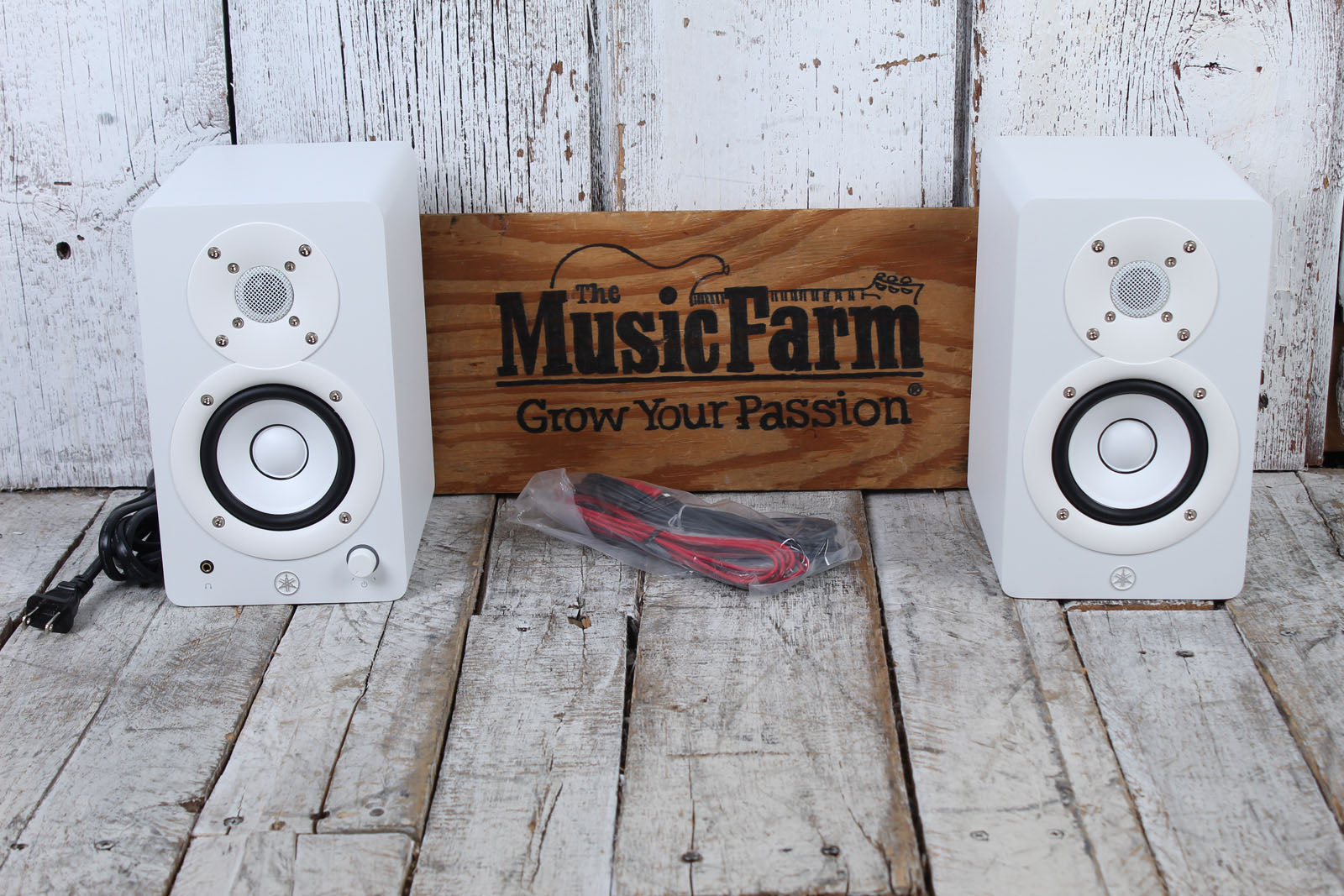

At The Farm, we don’t rely on bland manufacturer stock photos - we physically photograph one of each model to show a better representation of the product. Some minor details like wood grain and color finish can, and may vary slightly from the pictures below.
Specifications:
- Speaker Type: 2-way powered speaker, Bass-reflex type
- Frequency Response (-10dB): 70 Hz - 22 kHz
- Frequency Response (-3dB): 85 Hz - 20 kHz
- Crossover: 3.2 kHz
- Maximum Output Level (Measured peak, IEC noise@1m): 100dB SPL
- Components: HF- 0.75” Dome ; LF - 3.5” Cone
- Nominal Impedance: 6 Ω

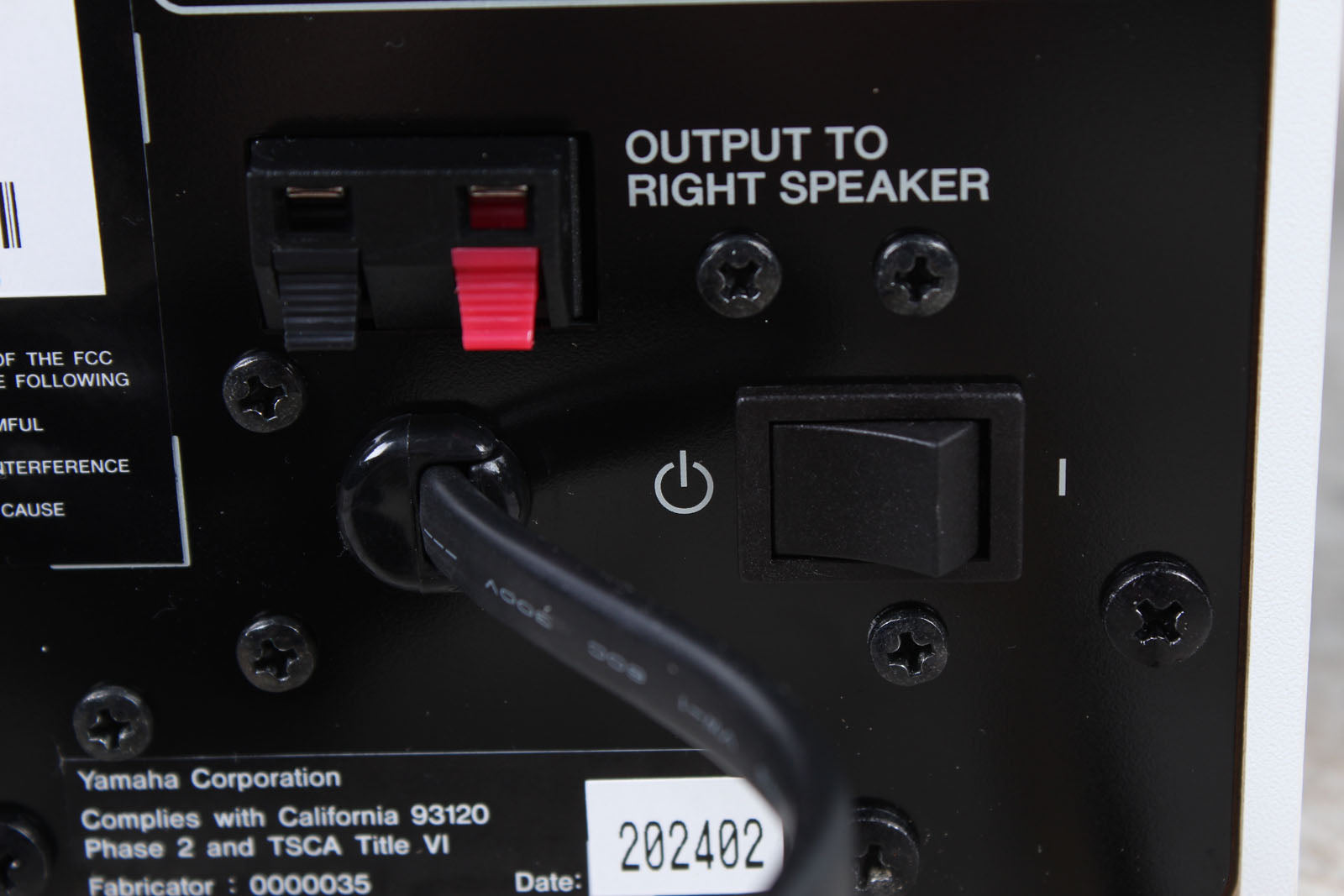

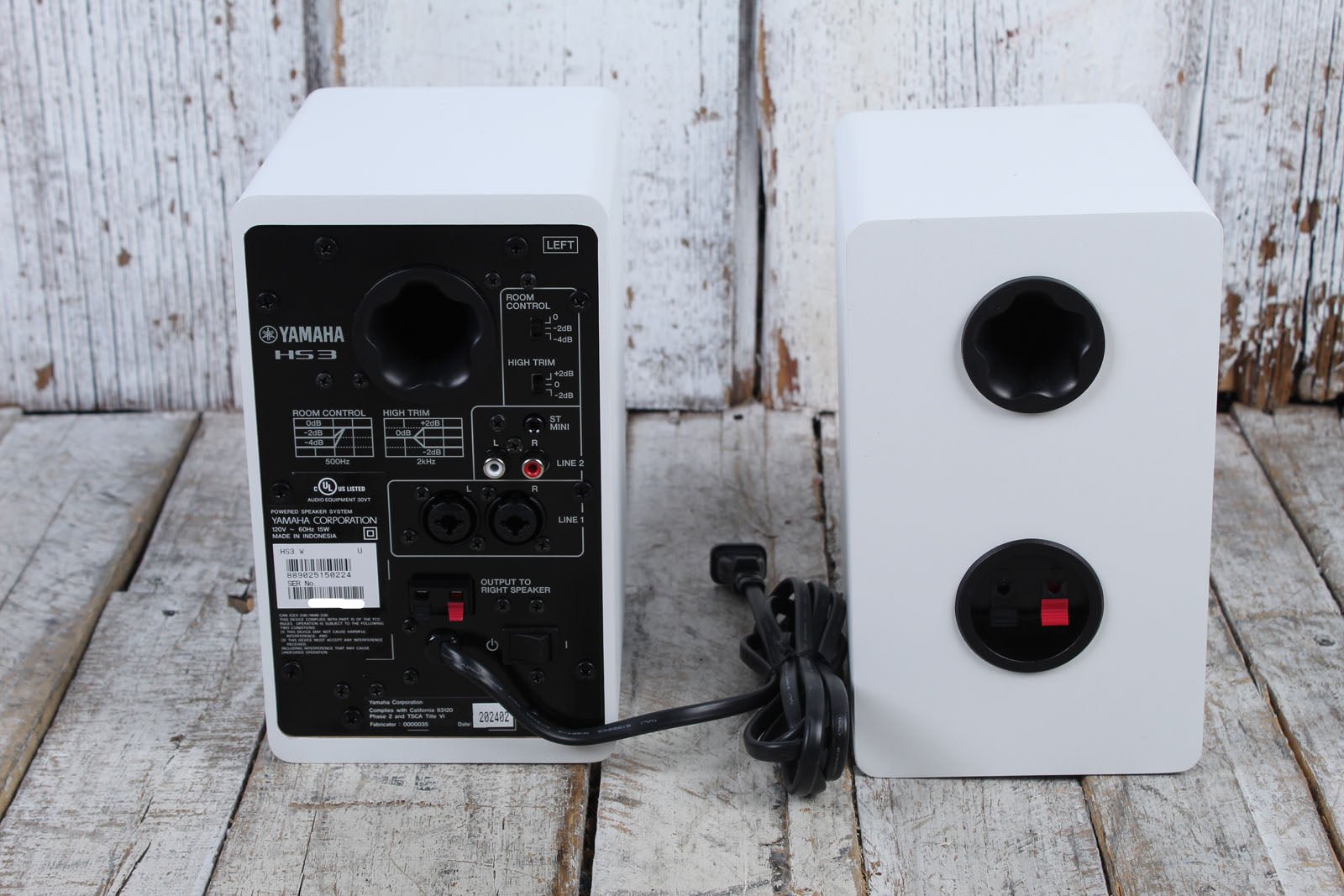

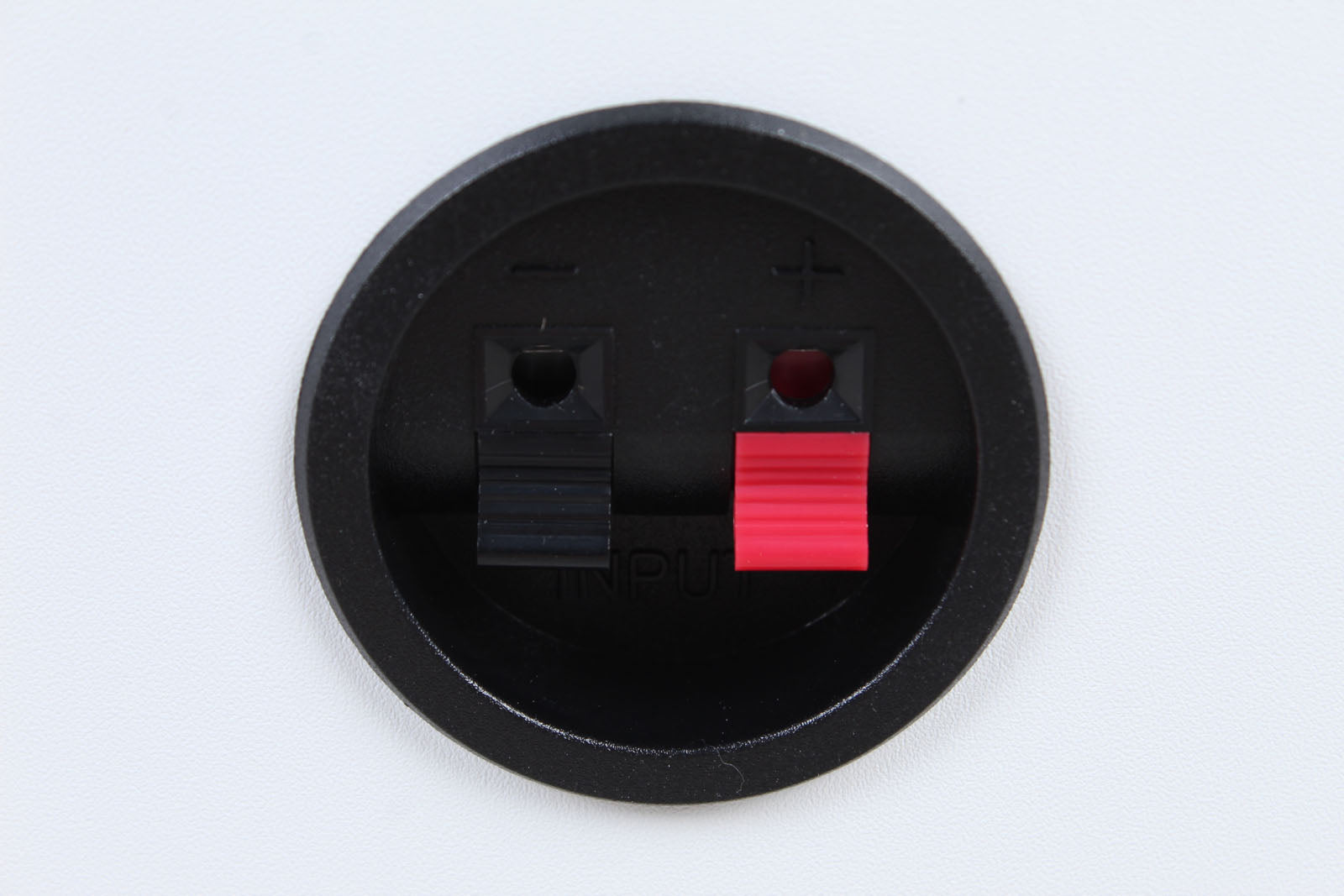

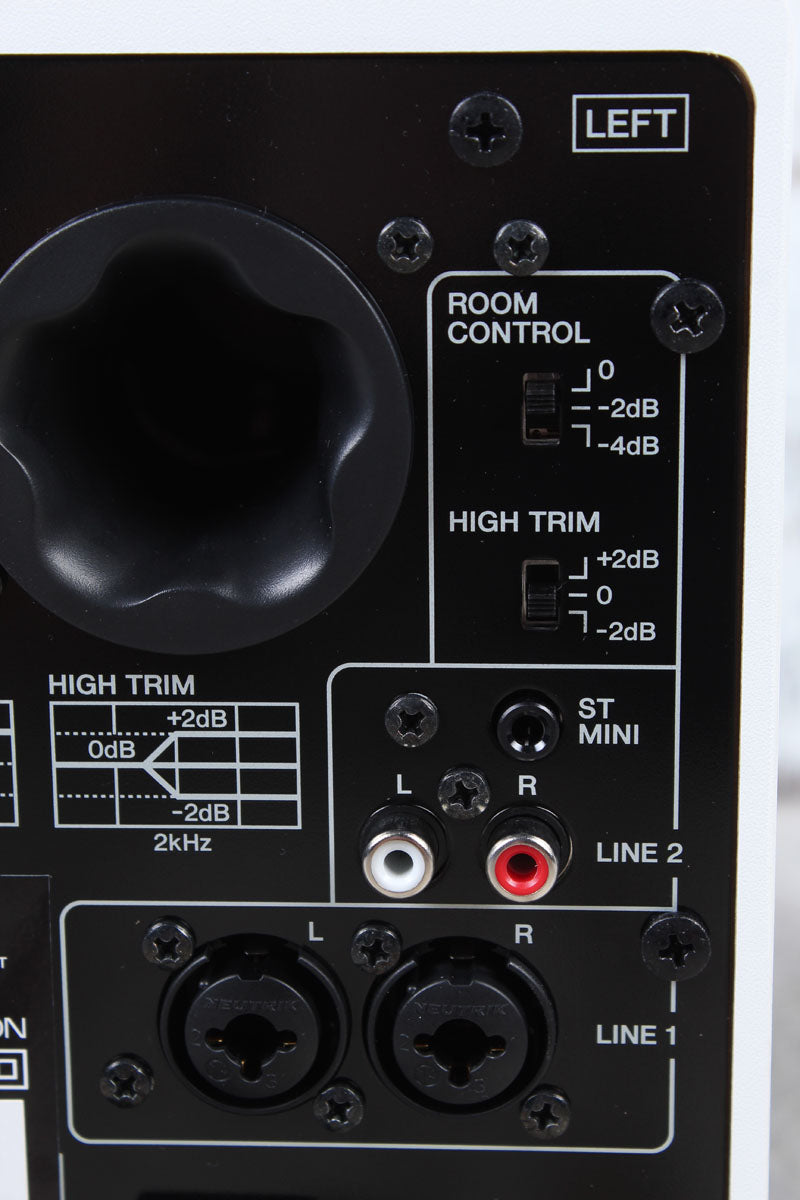

- I/O Connectors: [Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output
- Output Power: 26 W + 26 W (Dynamic, RL=6 Ω), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 Ω)
- Input Sensitivity: LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
- Input Level: LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
- Input Impedance: LINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ

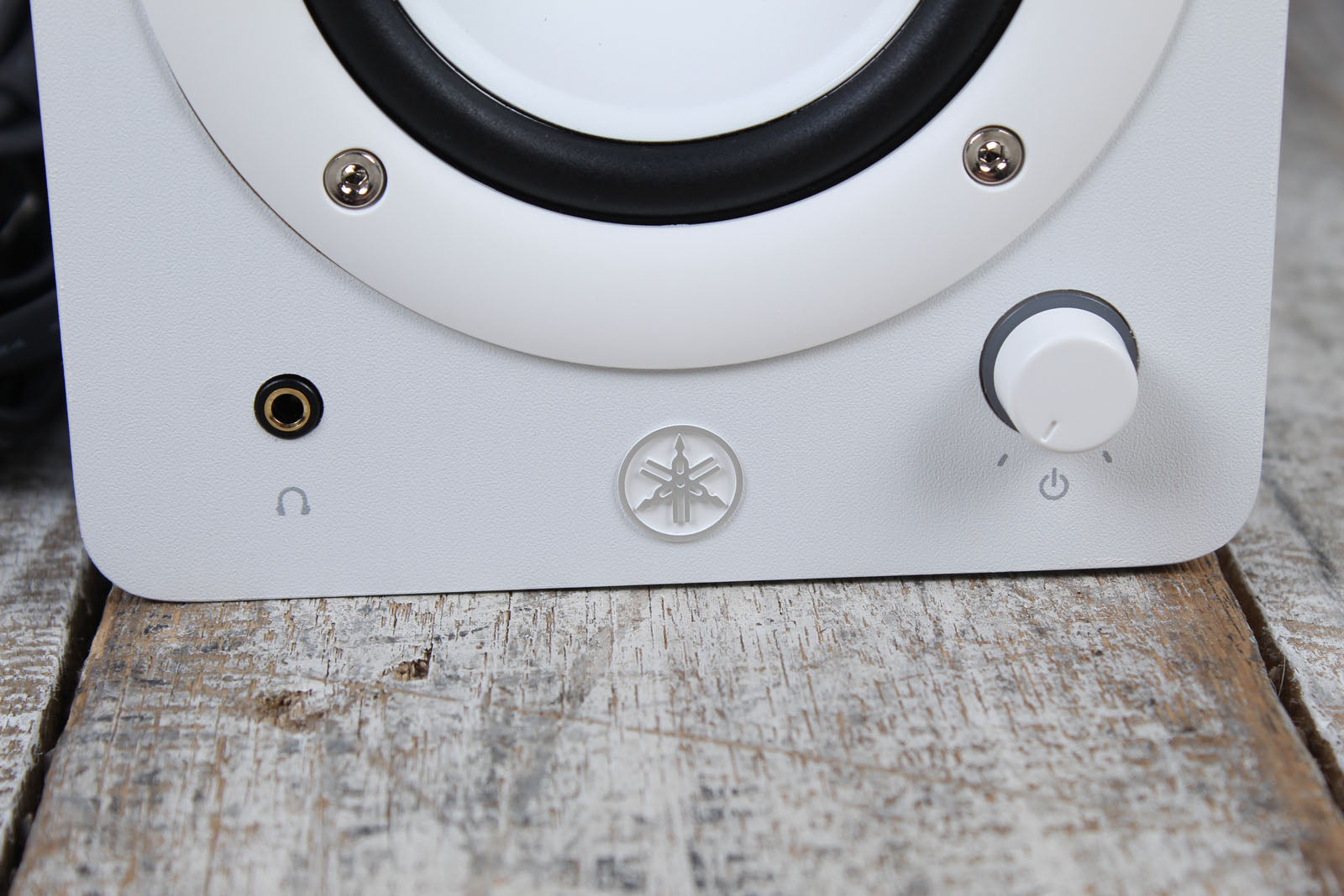

- Controls: ront: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
- Indicators: Power ON (White LED)
- Power Consumption: 15 W
- Cabinet Material: MDF
- Width: L Side: 132 mm (5.2"), R Side: 132 mm (5.2")
- Height: L Side: 223 mm (8.8"), R Side: 223 mm (8.8")
- Depth: L Side: 189 mm (7.4"), R Side: 177 mm (7.0")
- Approx. Total Weight: 11lbs

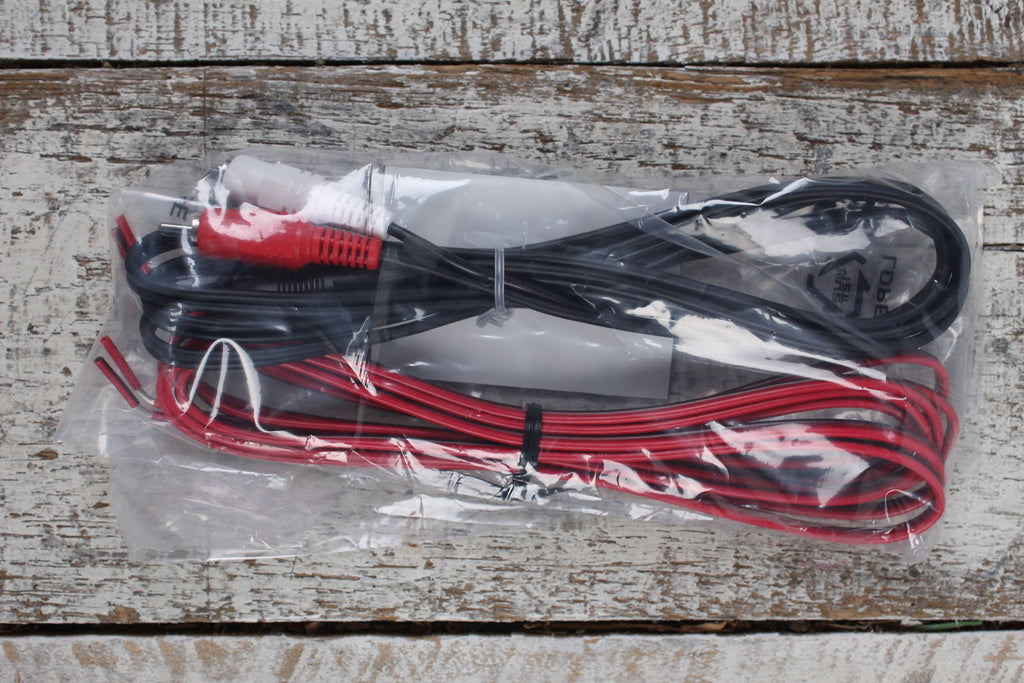

- Included: Stereo Mini - RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide
- Color: White
