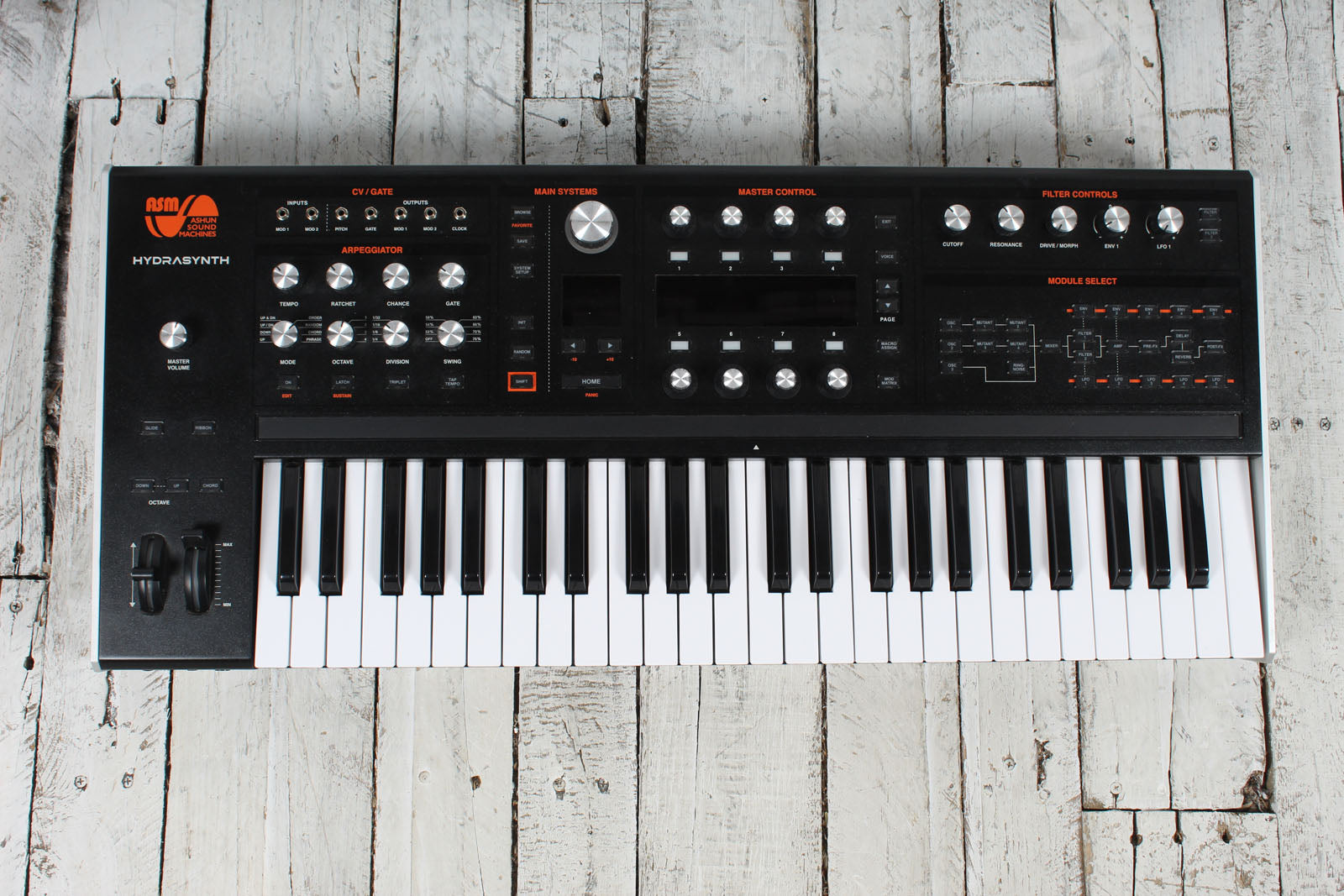

ASM Hydrasynth Synthesizer 49 Key 8 Voice Polyphonic Wave Morphing Synthesizer

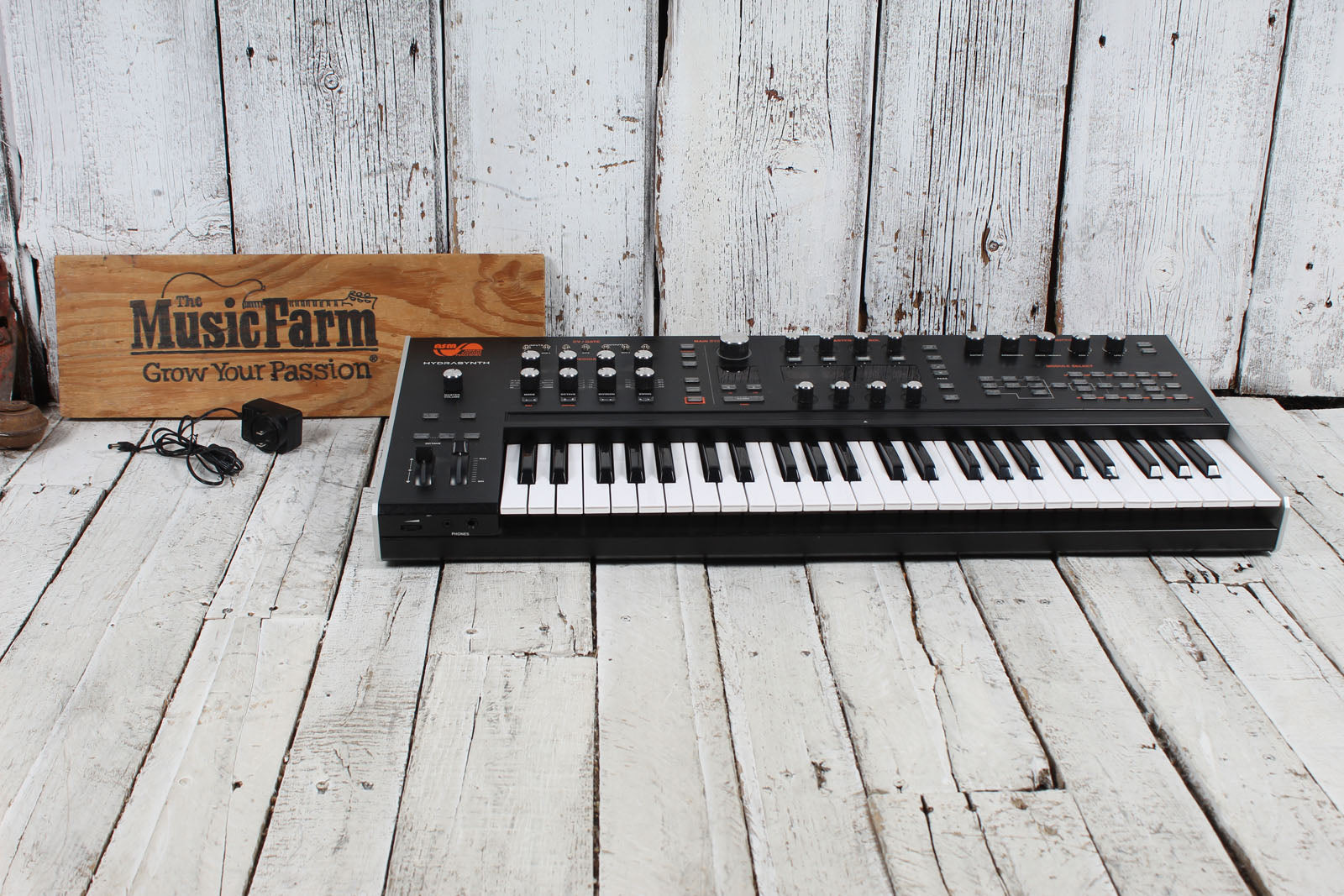

The synthesizer pictured is the actual synthesizer you will receive!

Just in on trade!

The HYDRASYNTH keyboard is both a sound designer’s dream synth and a performing musician’s ideal. The sound engine is designed for maximum flexibility and power, while the user interface was crafted for simplicity and instant access. Its many workflow shortcuts let you edit a patch quickly with a minimal amount of paging.

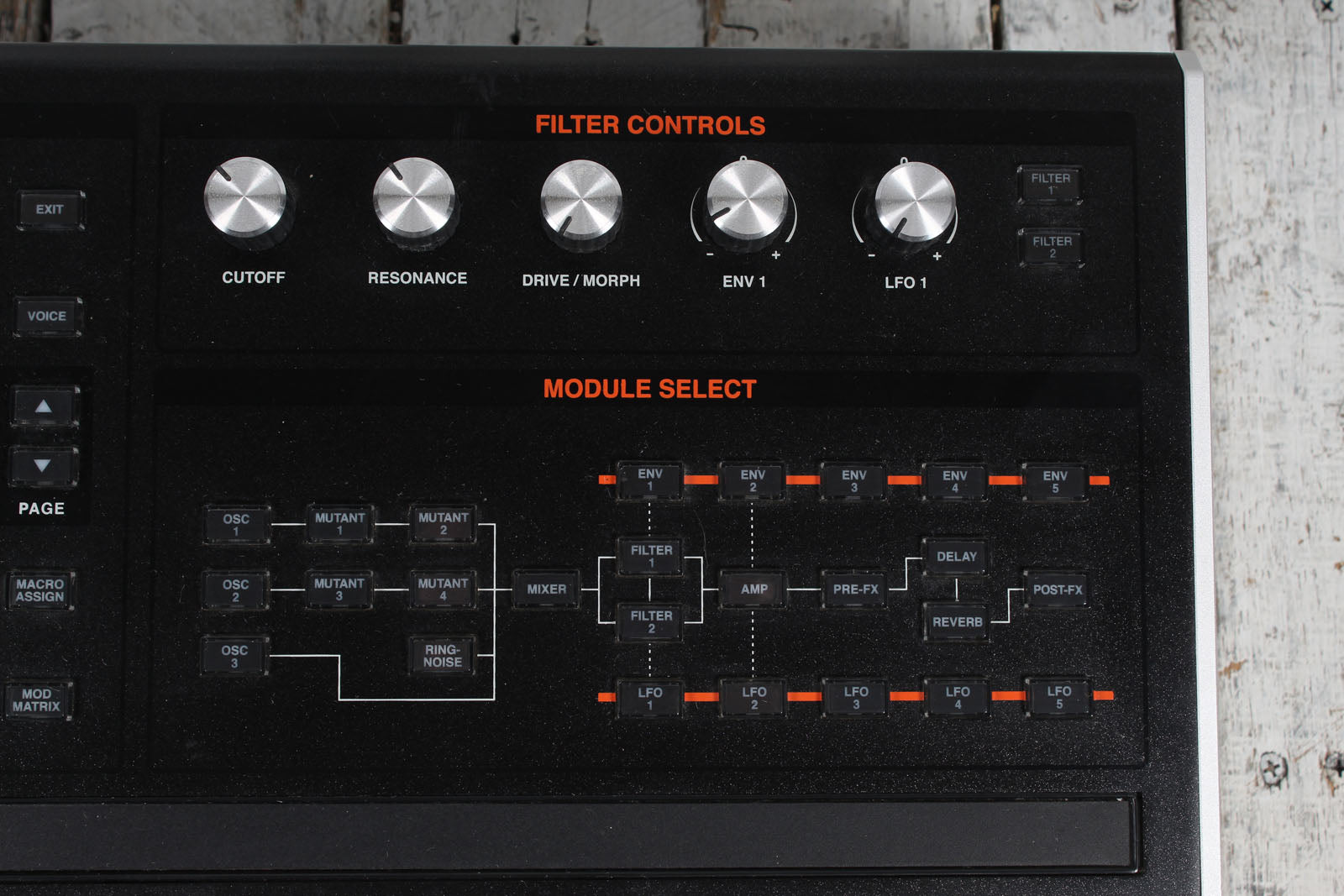

With an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutants, and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for performance capabilities, the Hydrasynth keyboard has the proprietary Polytouch keybed with polyphonic aftertouch. This provides a level of expressive, per-note control found only in certain vintage synths.

Add to this a 4-octave ribbon controller and ergonomically-designed pitch and mod wheels, and you have expression and control that are unequalled by any other hardware synthesizer on the market.

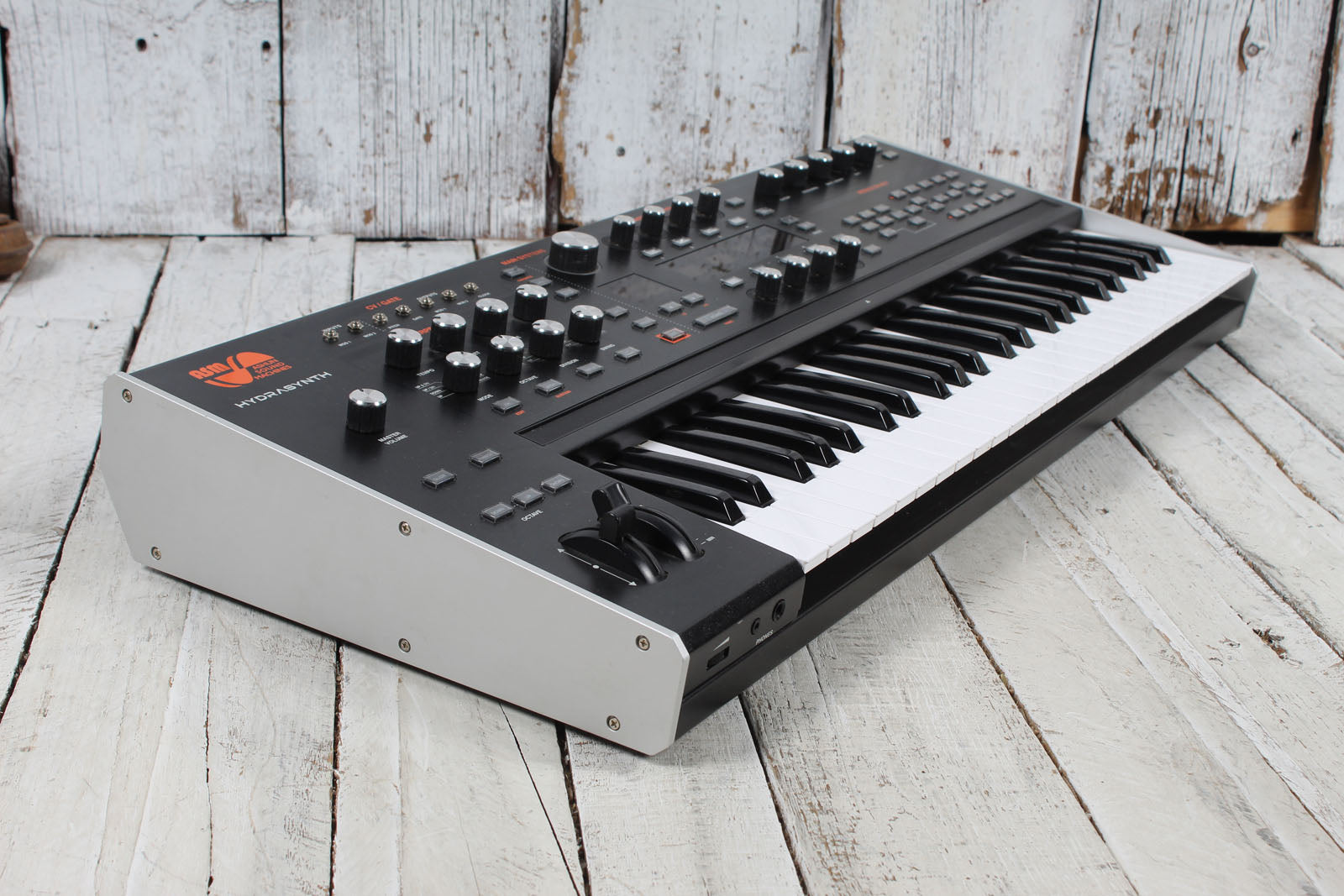

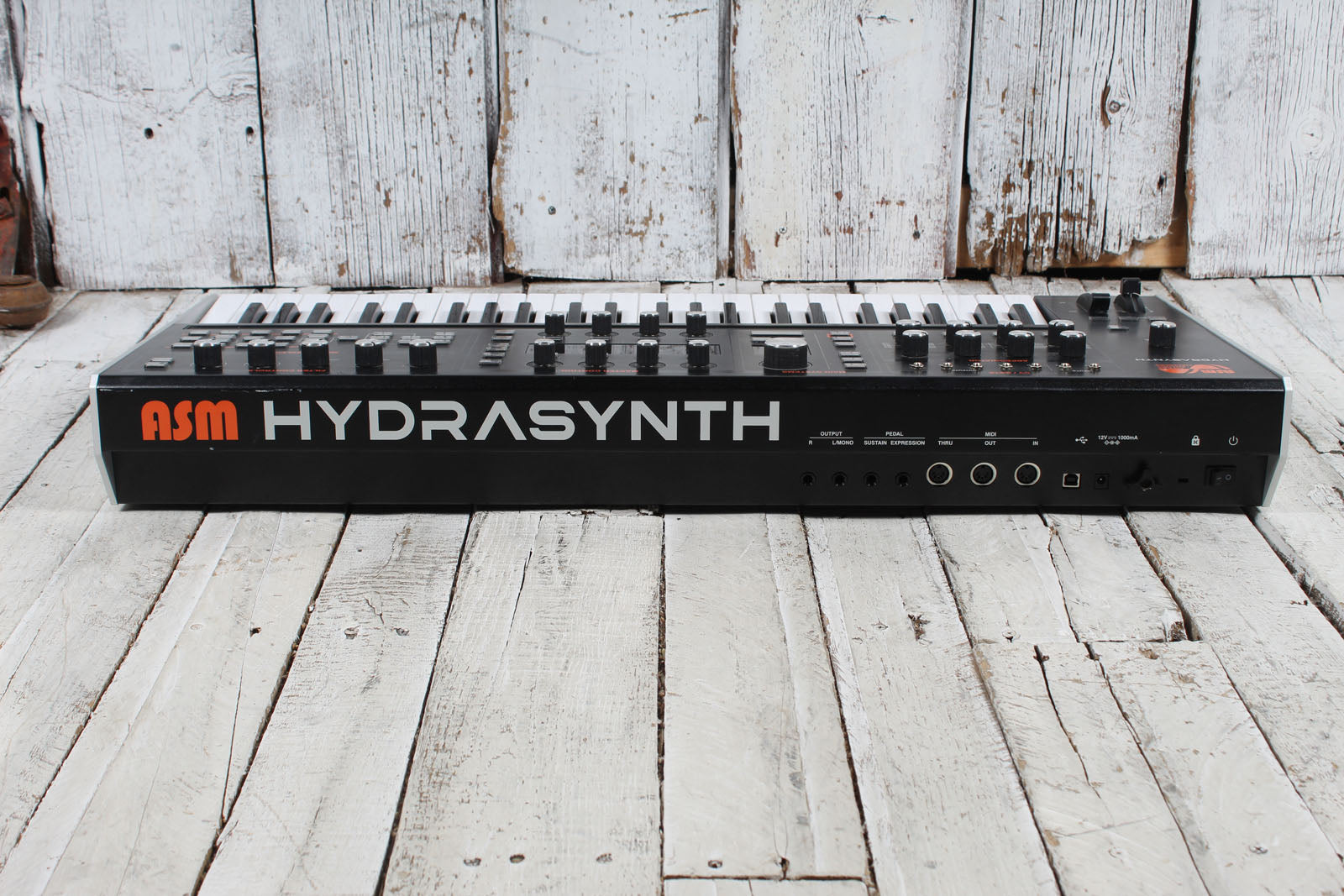

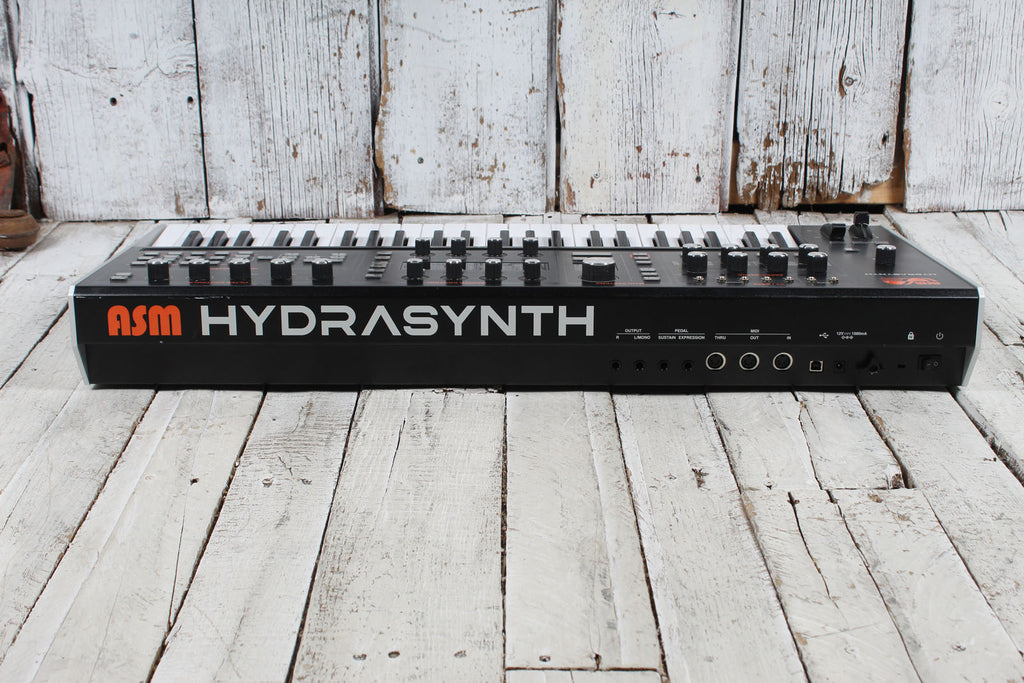

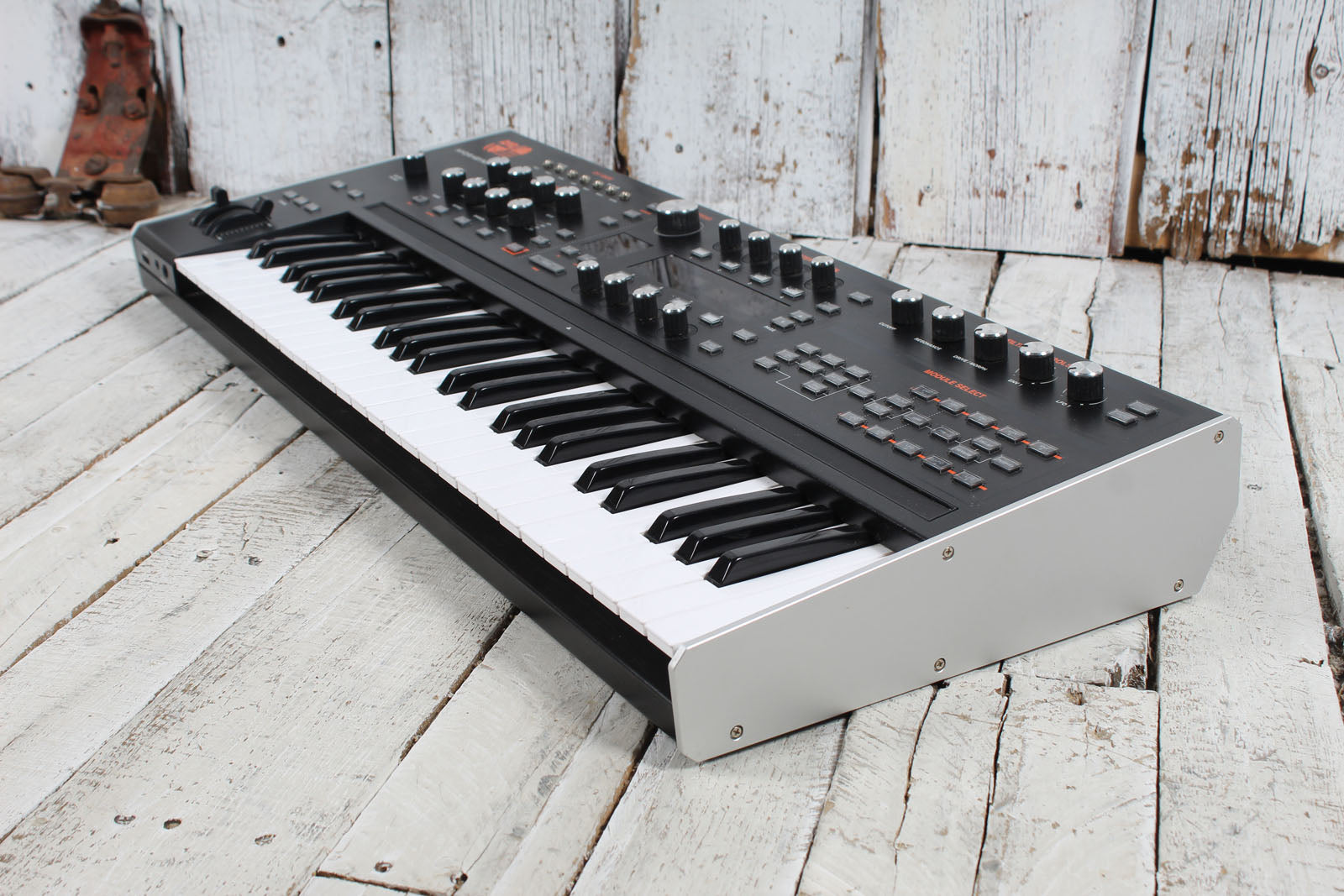

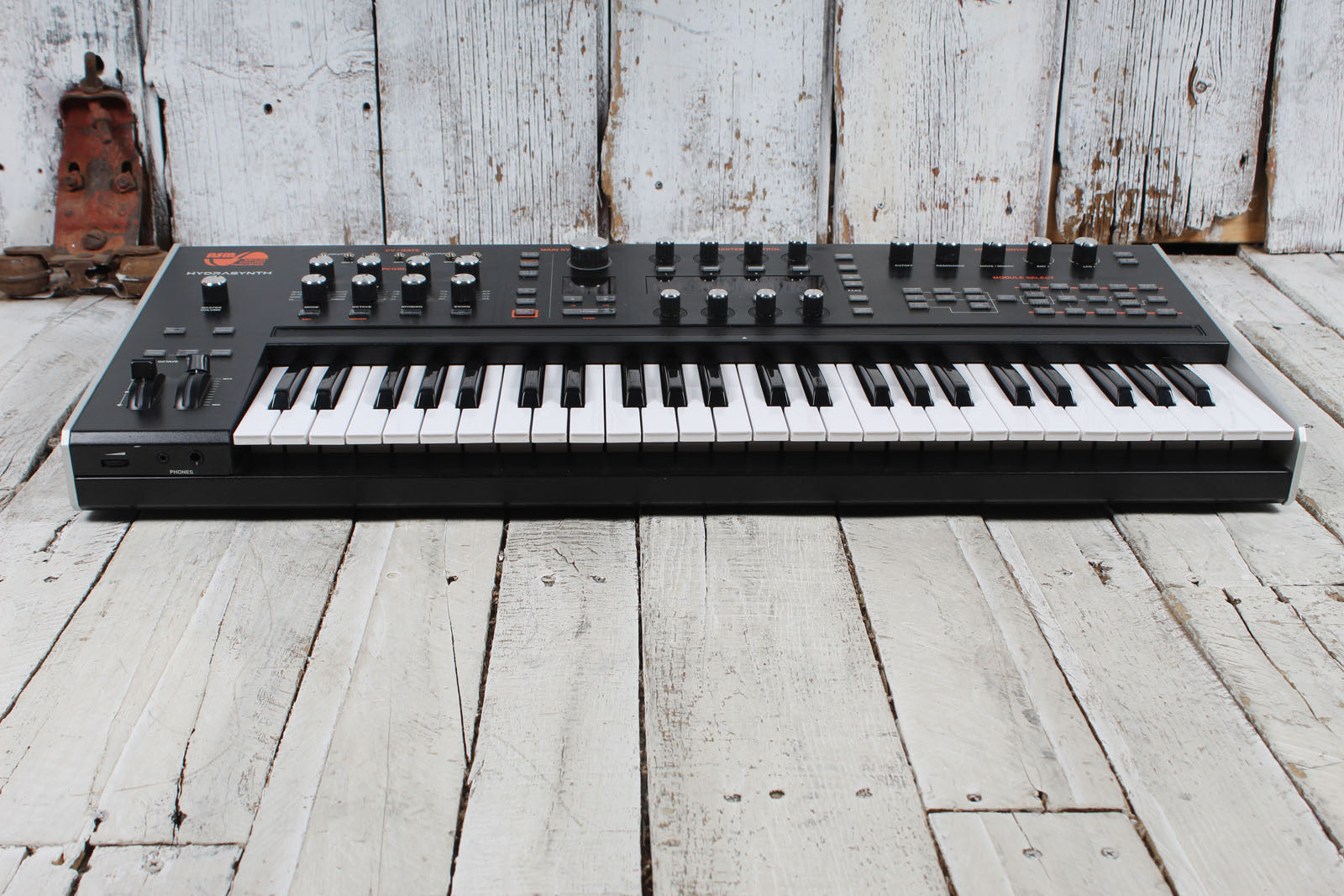

This is a used synthesizer and does show some signs of slight use, but has been fully tested and functions as expected. Please take a moment to review our pictures, as they accurately portray the true condition of this synthesizer.

Specifications

Metal Chassis:
　　•　Steel top and bottom
　　•　Aluminum side panels
Polytouch Keybed:
　　•　49 keys, semi-weighted
　　•　Polyphonic aftertouch
　　•　Selectable velocity / aftertouch curves
4-Octave Ribbon Controller:
　　•　Pitch Bend mode
　　•　Mod Only mode – use the ribbon as a modulation source
　　•　Theremin mode - the ribbon triggers a note
　　　　◦　Choose continuous pitch or one of 60 scales, including microtonal
　　　　◦　Selectable range: 2, 4, or 6 octaves
　　•　Ribbon can be CV source

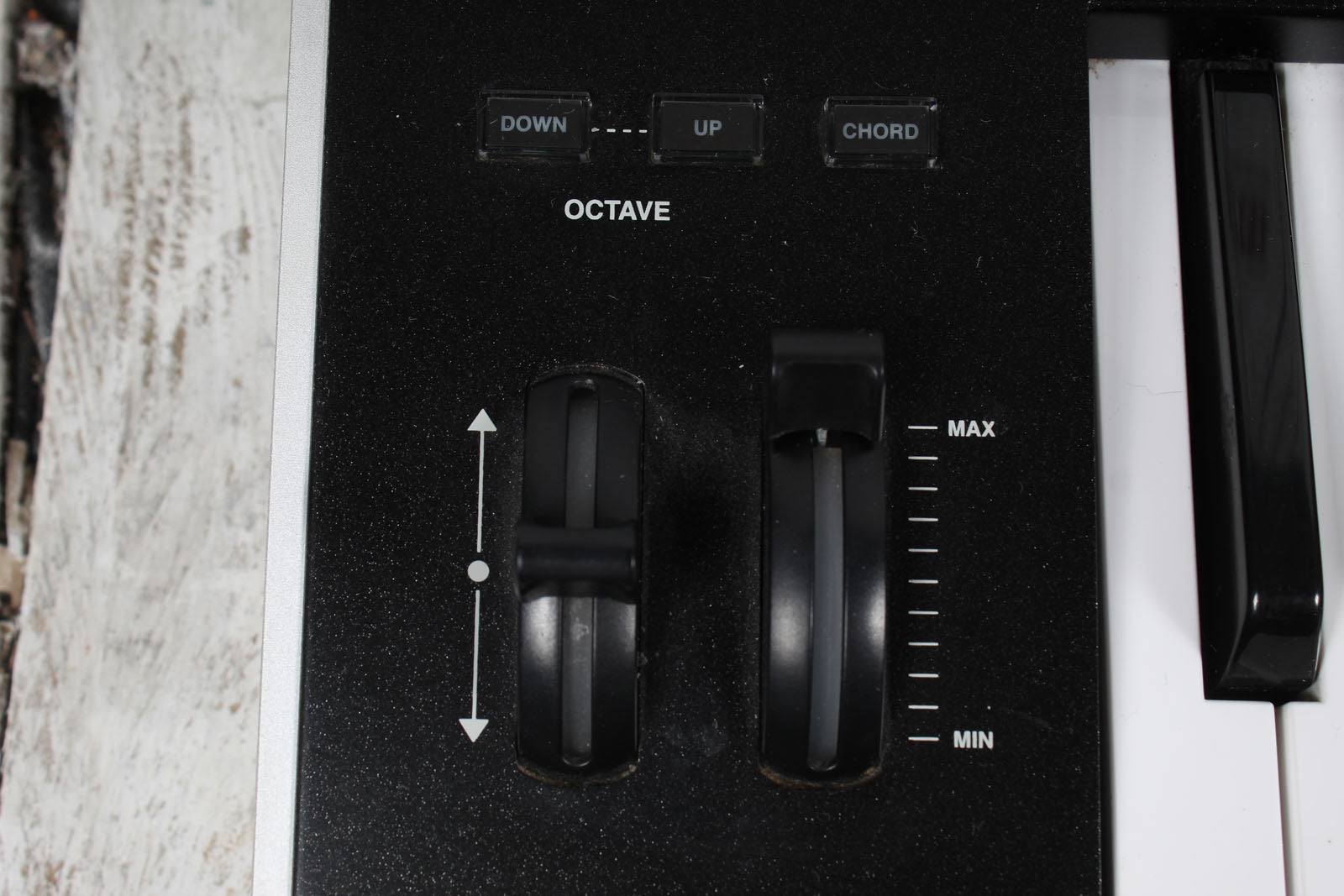

Additional Hardware Controls:
　　•　Octave Up/Down buttons for instant transposition
　　•　Chord mode button: stack up to 8 notes in a chord
　　•　Pitch bend / modulation controls with adjustable depth
Patch Memory:
　　•　8 banks with 128 patches each: 1,024 total
　　•　Sort patches by Patch number, Name, or Category
　　•　Browse Favorites: Select 32 patches from any bank for immediate access

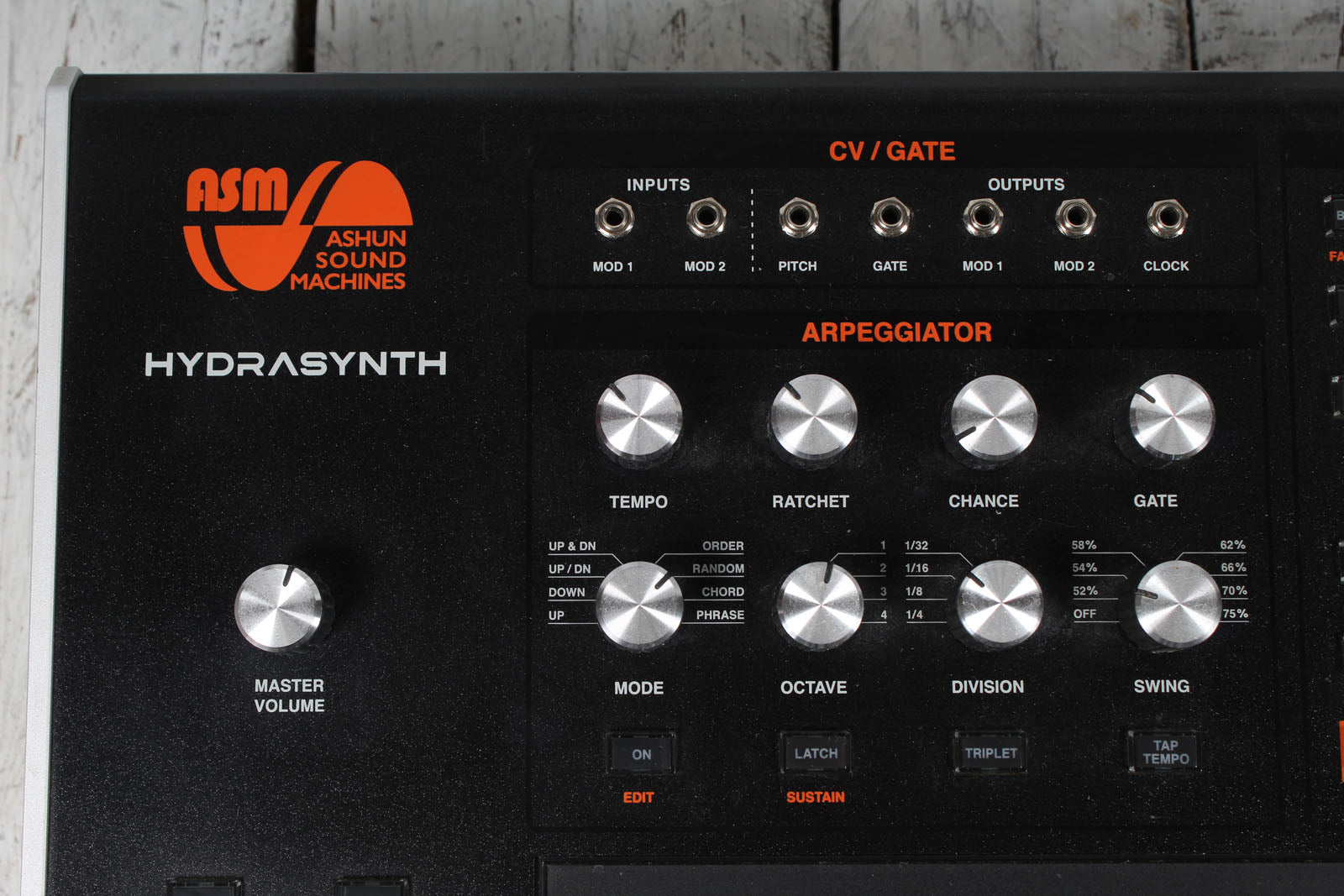

CV / Gate Inputs and Outputs;
　　•　Supports multiple CV / Gate standards
　　　　◦　CV
　　　　　　-　1v per octave 0-10V
　　　　　　-　1v per octave +/-5V
　　　　　　-　Hz to Volts 0-10V
　　　　　　-　1.2V per octave
　　　　　　-　Adjustable offset: +/-99 cents
　　　　　　-　Adjustable reference note: C-1 to G9
　　　　◦　Gate
　　　　　　-　V-trig, S-trig
　　　　　　-　3V, 5V, 10V
　　　　◦　Mod In / Out range
　　　　　　-　+/-5V, 0-10V, 0-5V, 0-1V
　　　　　　-　Adjustable offset: +/-3V
　　　　◦　Clock Out
　　　　　　-　1PPS, 2PPQ, 24PPQ, 48 PPQ
　　　　　　-　Clock Voltage: 3v, 5V, 10V
　　　　　　-　Selectable clock division: Off, 1/2, 2, 4
　　　　　　-　Adjustable offset: +/- 100ms

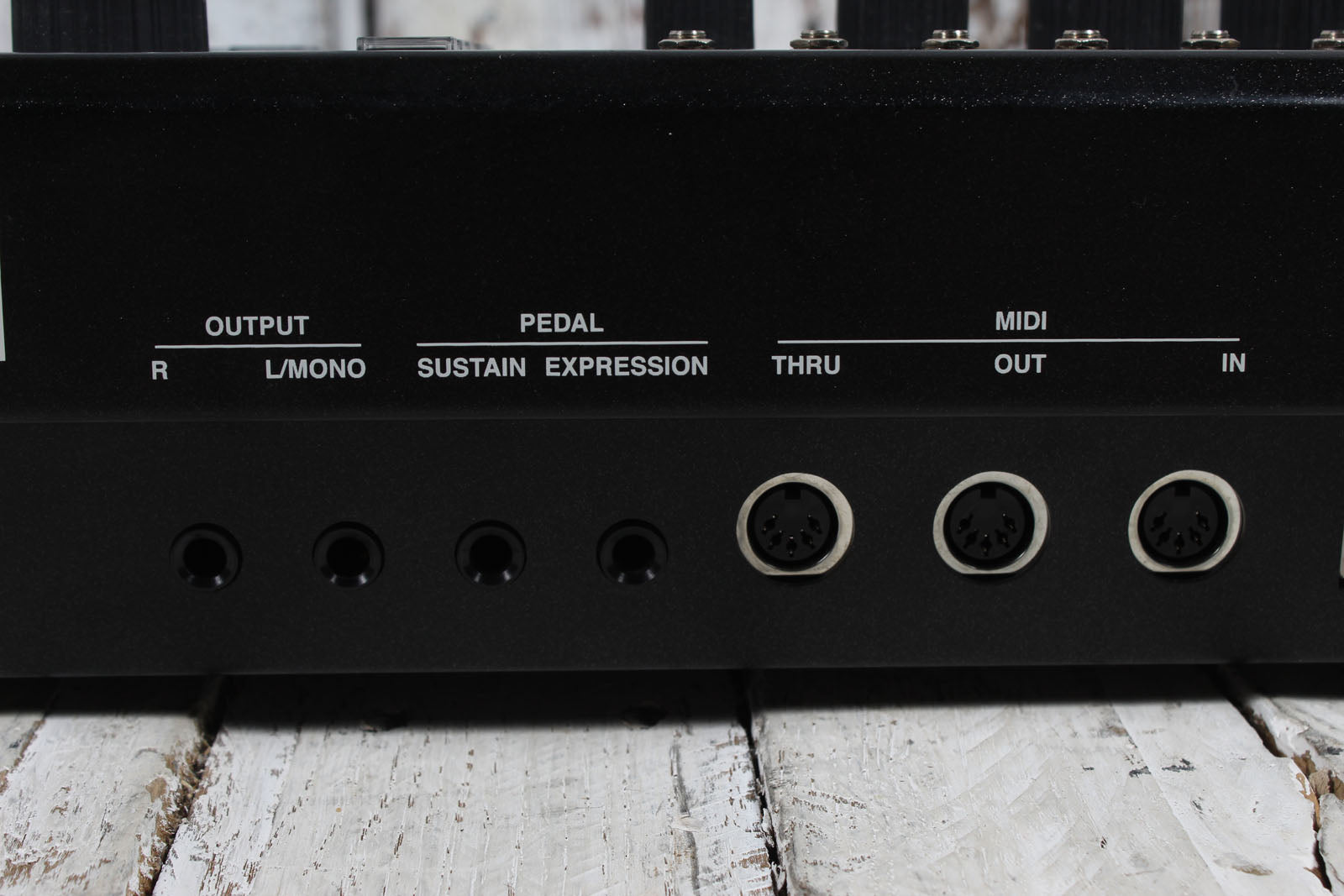

MIDI IN / OUT / THRU:
　　•　Voice overflow mode to expand polyphony with a second Hydrasynth
Expression pedal input:
　　•　Selectable curves and polarity
Sustain pedal input:
　　•　Polarity sensing
　　•　Three modes of operation: Sustain, Sostenuto, and Modulation Only

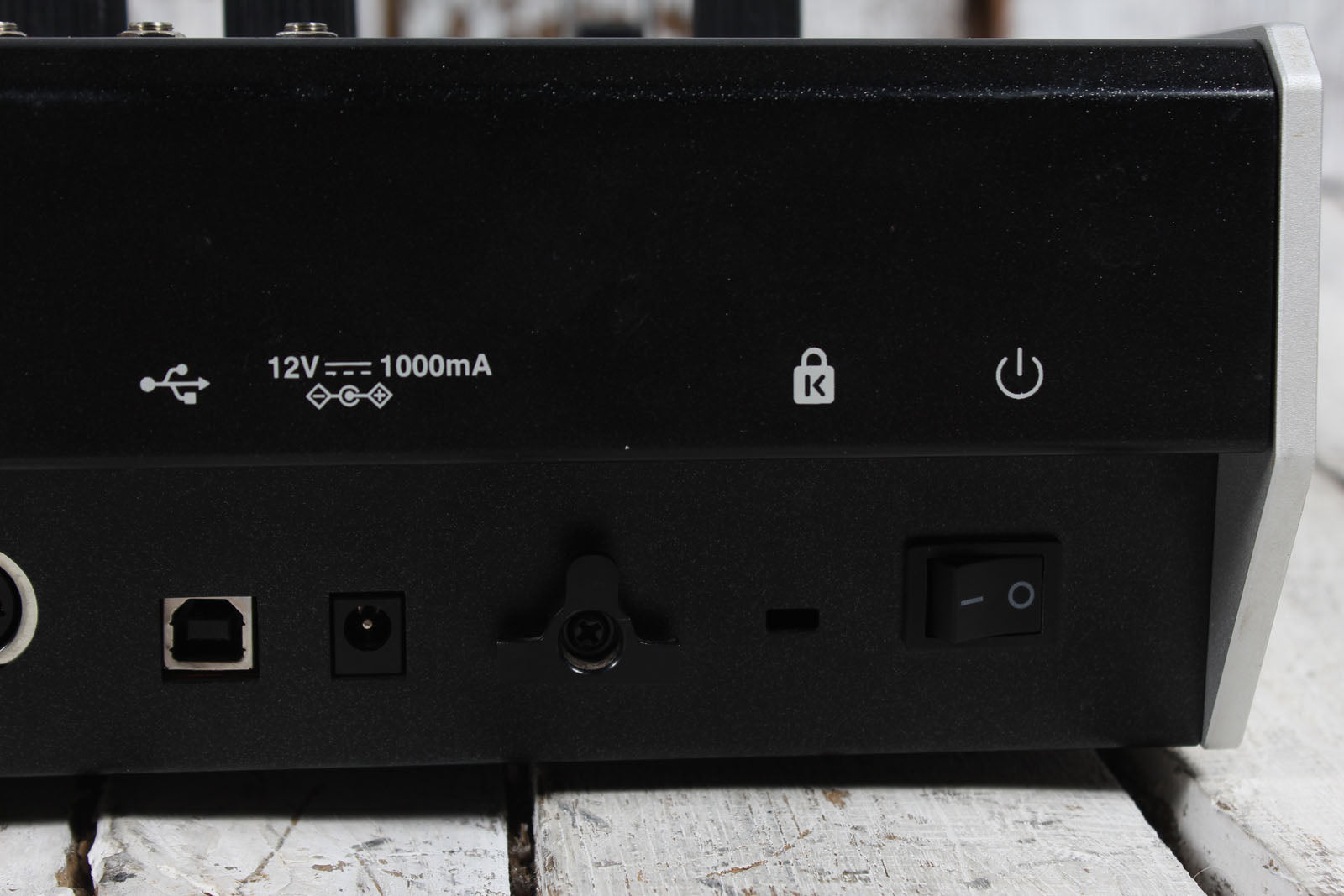

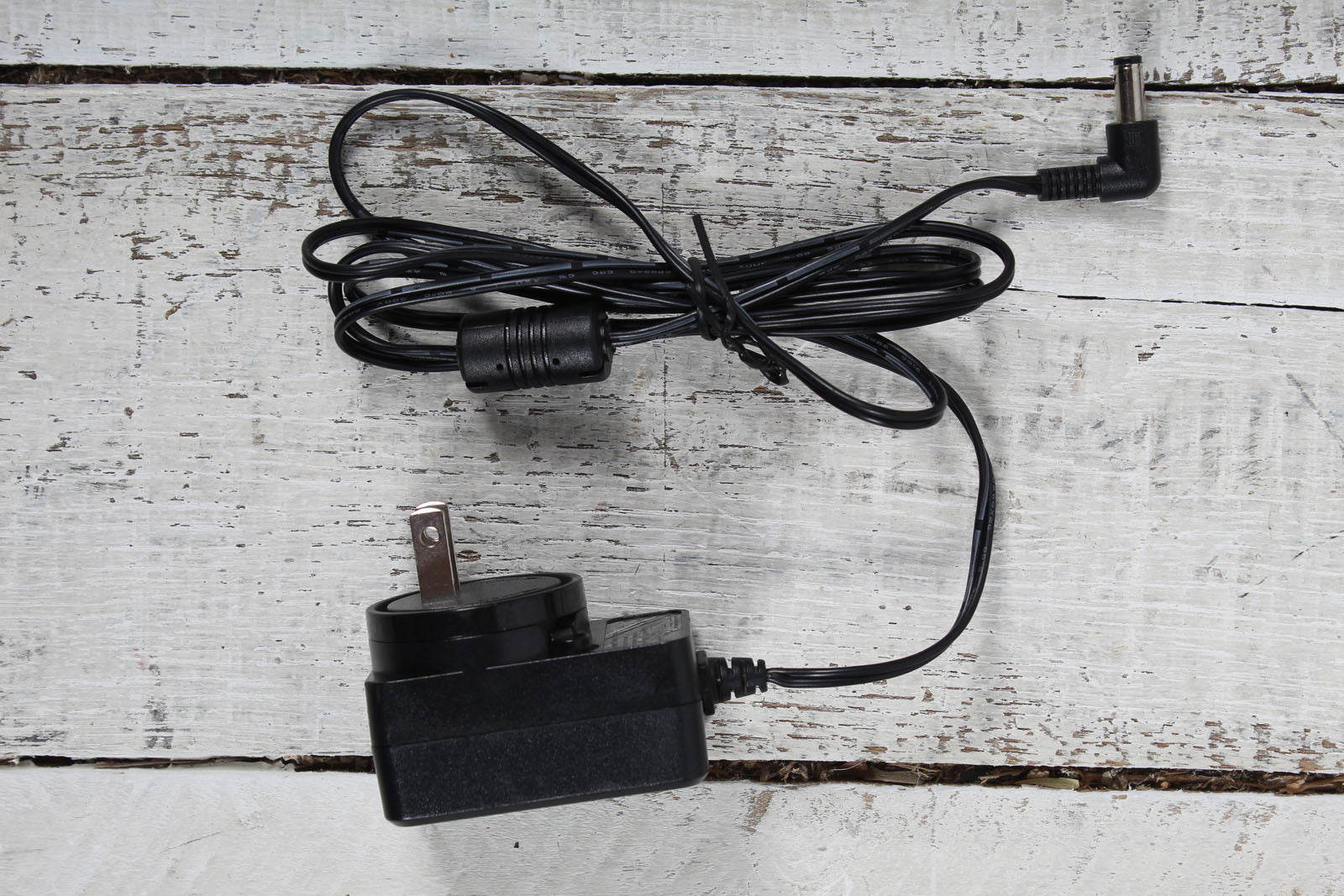

DC input jack
USB port:
　　•　Supports USB MIDI In / Out
Audio outputs:
　　•　Stereo analog outputs (balanced)

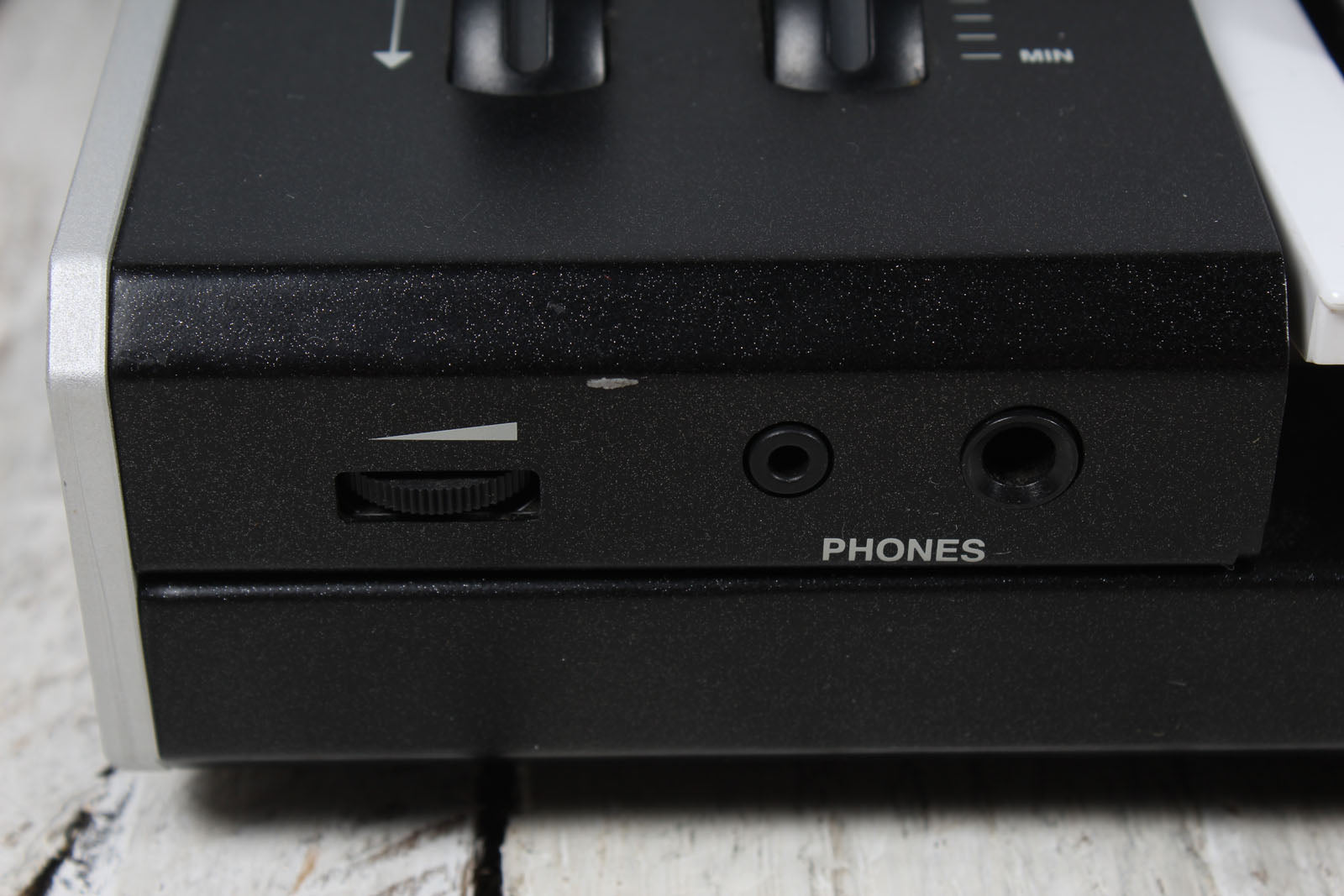

　　•　Two headphone connectors
　　　　◦　6.35 mm (1⁄4 inch) and 3.5 mm
　　　　◦　Shared volume control
　　　　◦　Impedance: 16 – 75 Ohm
Dimensions:
　　•　31.5 x 13.78 x 4.05 inches
Actual Weight:
　　•　22lbs 1oz
