At The Farm, we don’t rely on bland manufacturer stock photos - we physically photograph one of each model to show a better representation of the product. Some minor details like wood grain and color finish can, and may vary slightly from the pictures below.
The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700 watts of power, achieving an SPL of 129dB, delivered with remarkable clarity and dynamic characteristics.
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies.

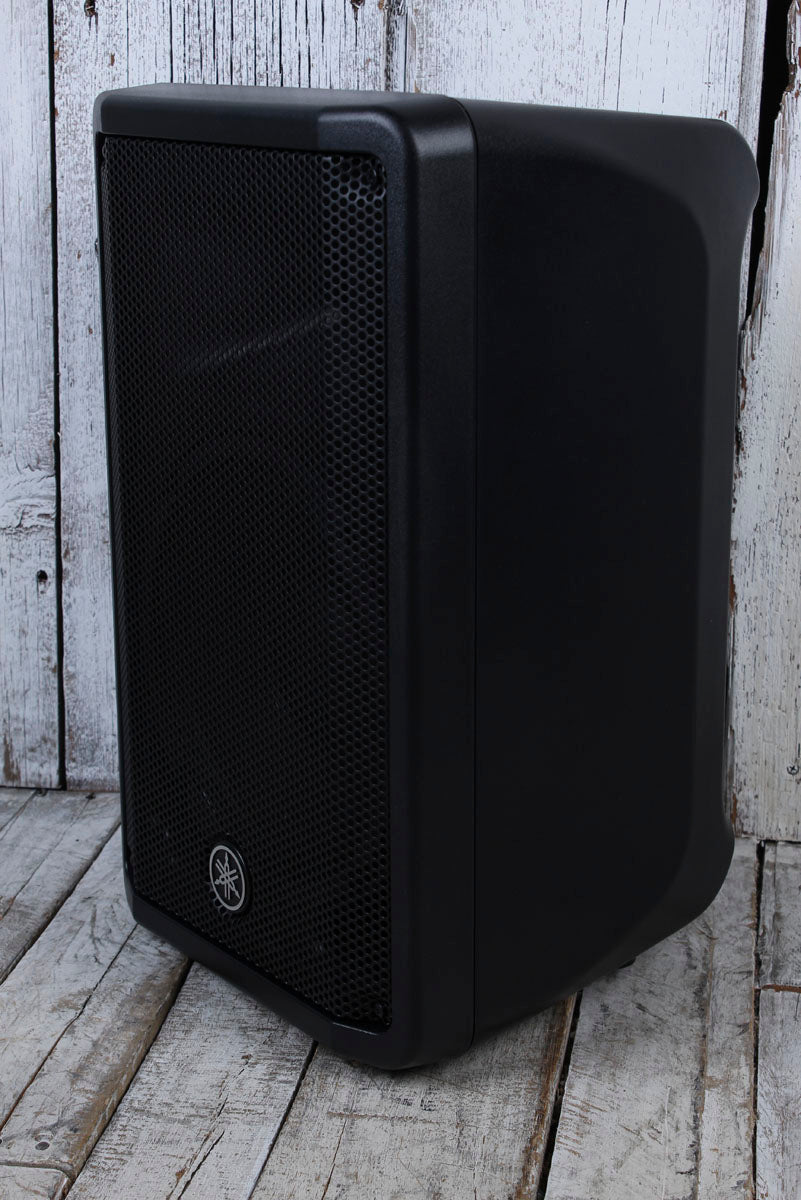

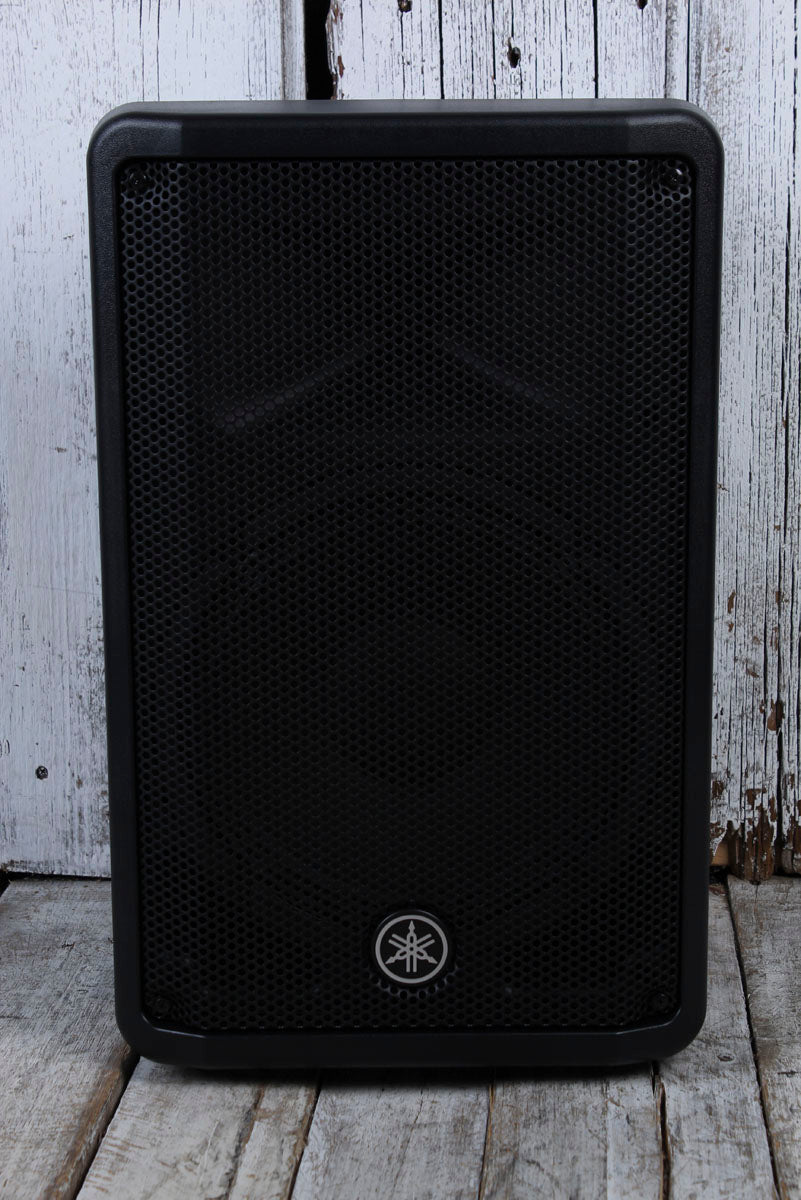

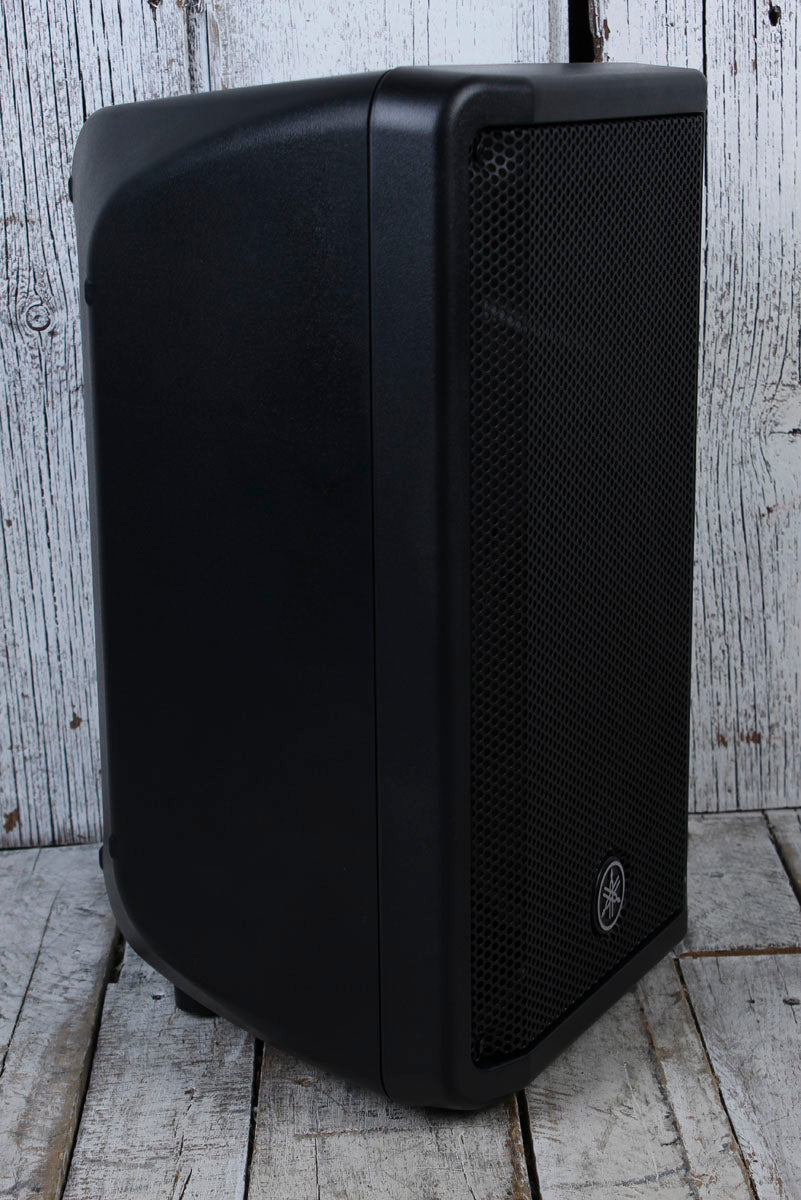

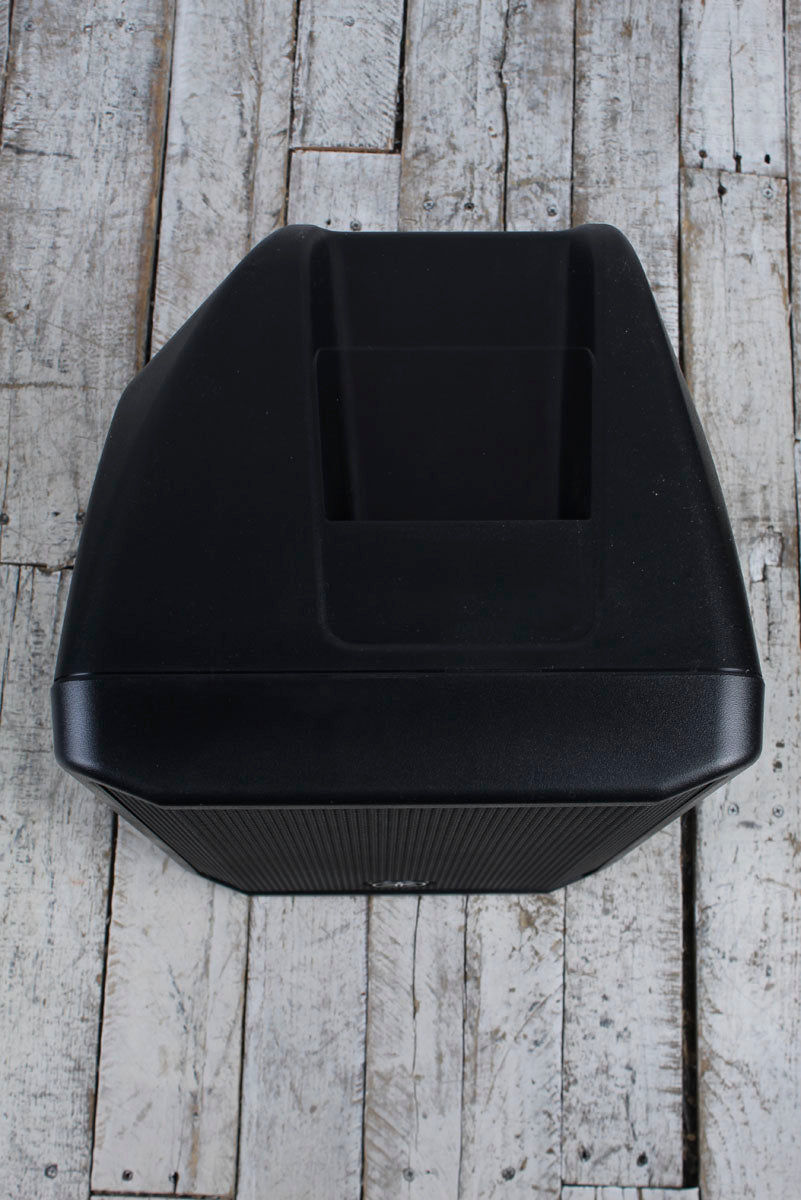

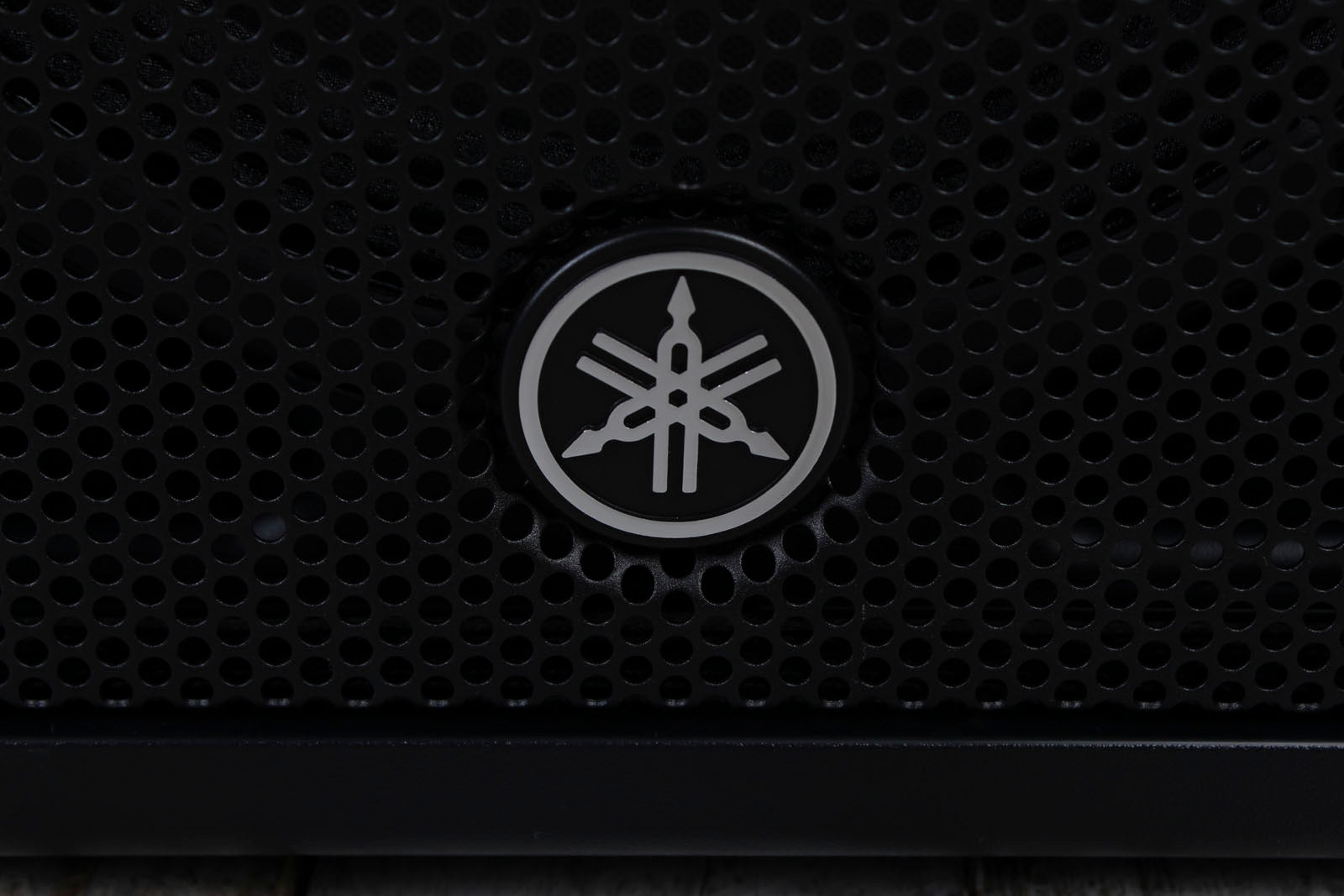

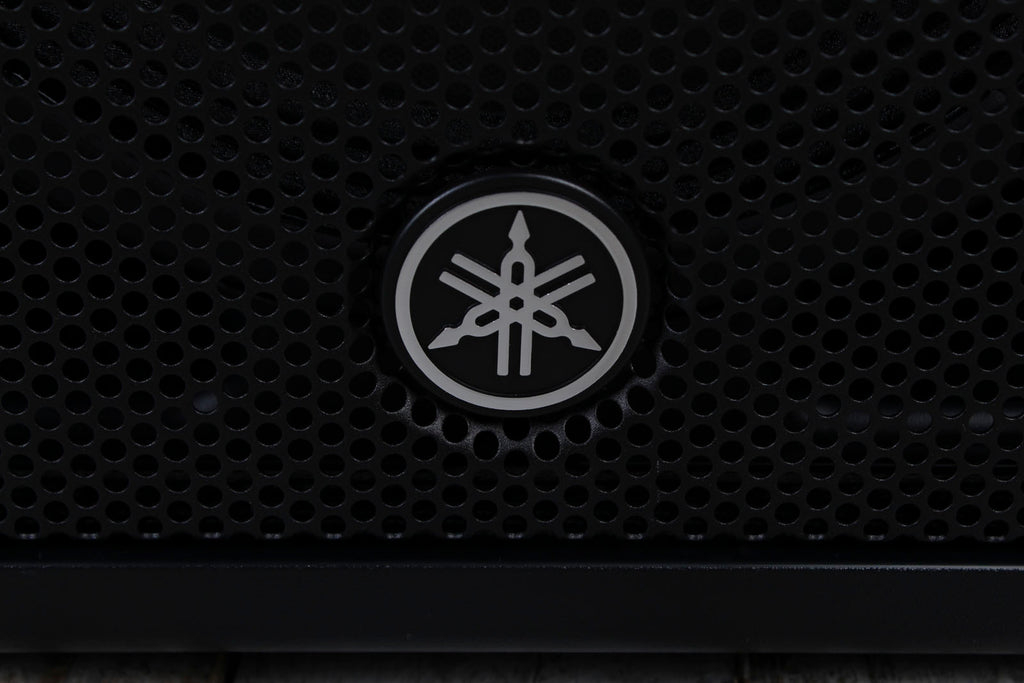

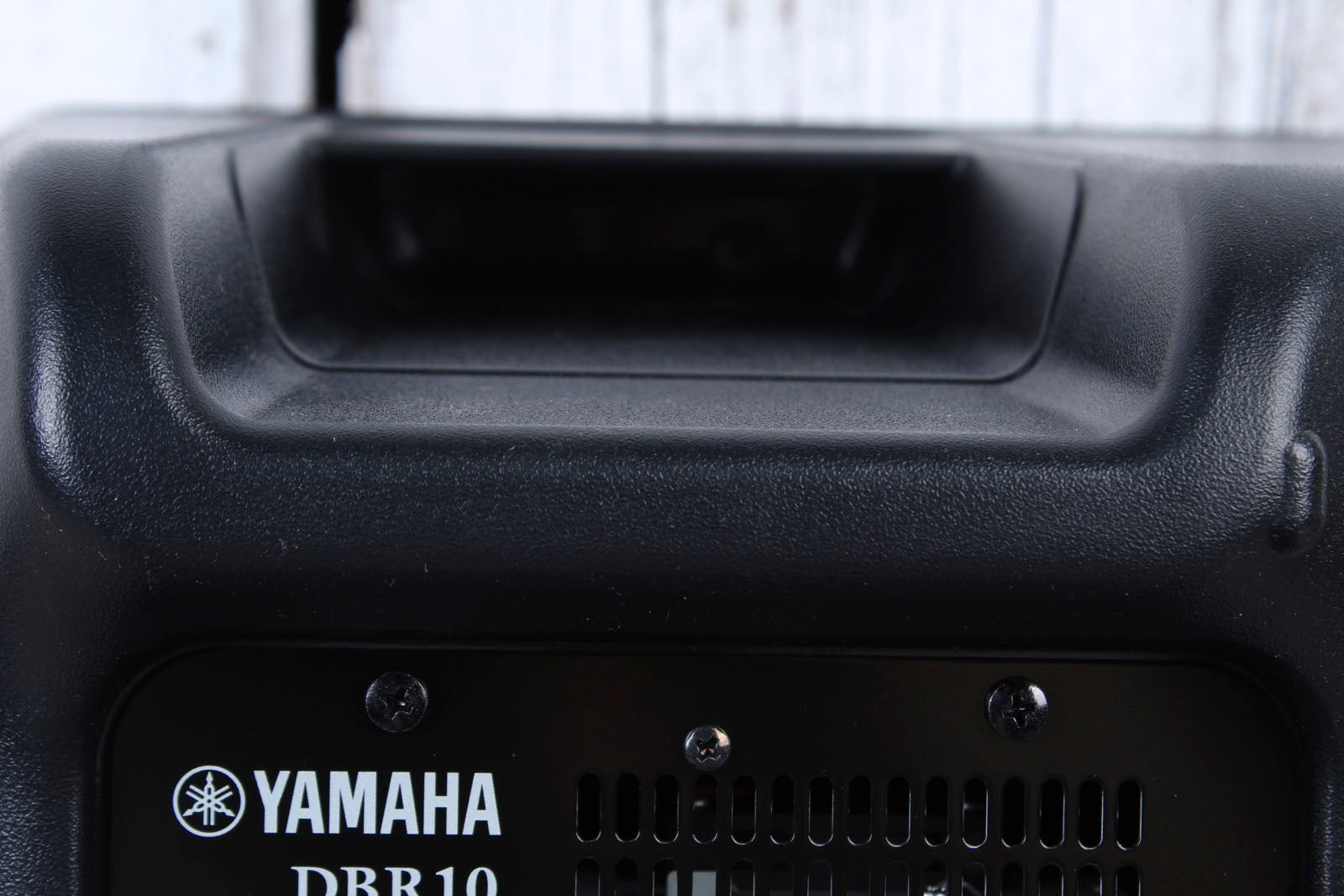

This DBR10 speaker feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while ergonomic handles provide effortless transportation and system setup.
The DBR10 features an optimized 50° wedge angle for floor monitoring.

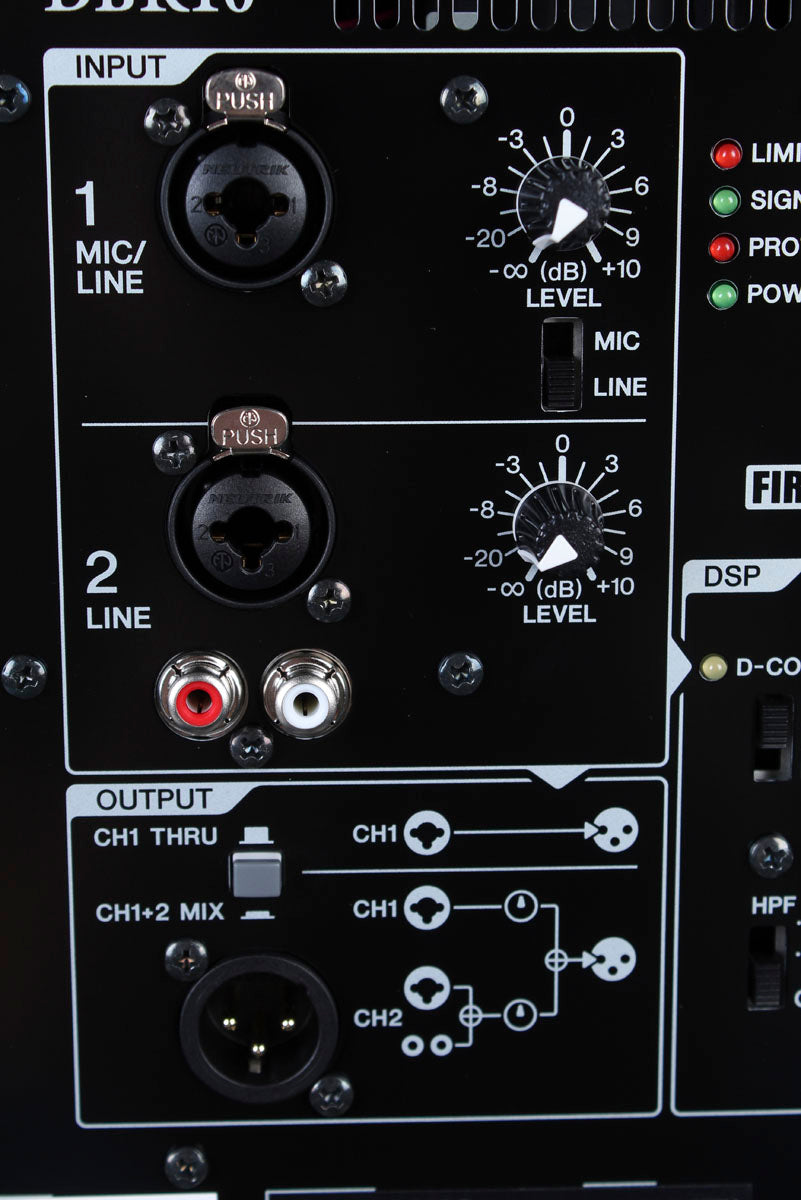

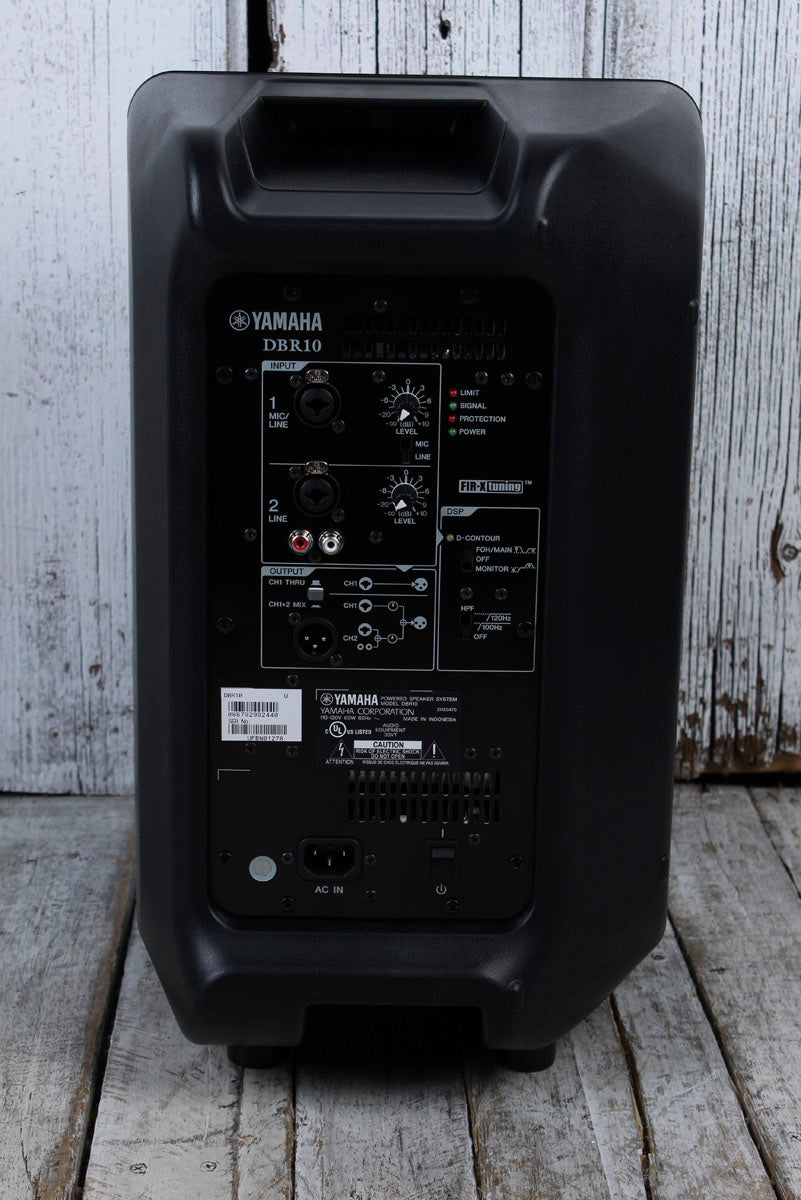

DBR10 speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

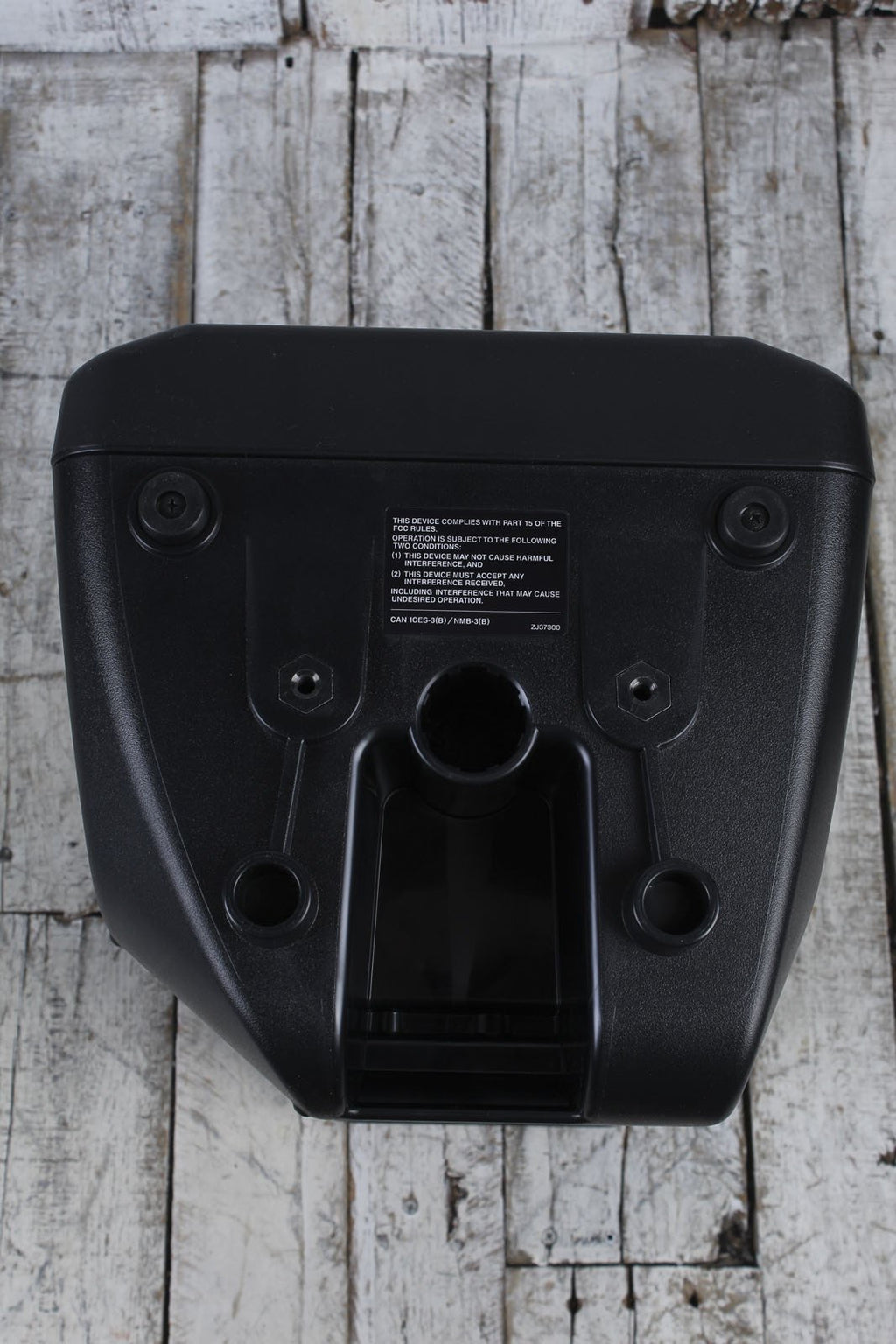

DBR10 loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts. *Speaker brackets and eye-bolts are not included.
- Brand: Yamaha
- Product Warranty: 7 Year - USA only
- Approx. Weight: 22lbs 15oz
- Continuous Power Rating: 700W
- Frequency Range: 55Hz-20kHz (-10dB)
- Max SPL - e.g. 112db: 129dB
- Pole Mountable: Yes
- Input 1: 2 x 1/4 Inch XLR Combo
- Input 2: Stereo
- Output 1: XLR
